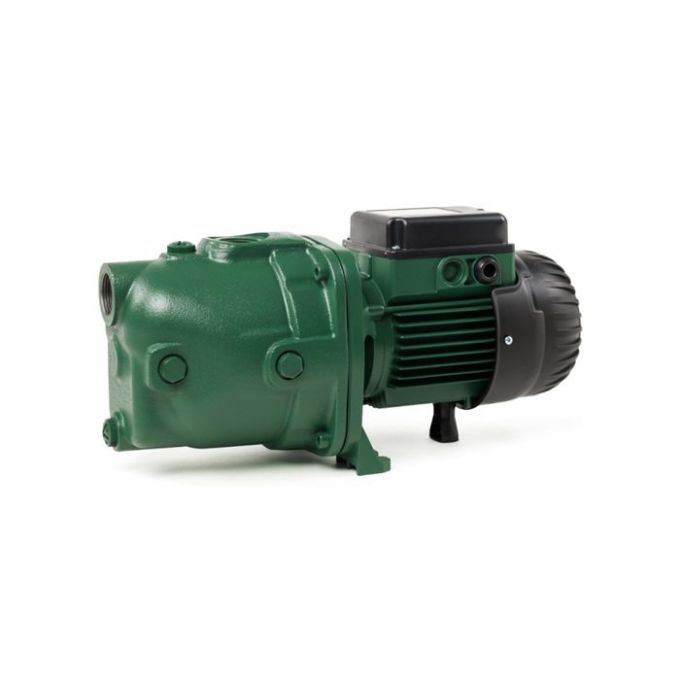

DAB - JET 151 M Self-Priming Centrifugal Pump - 240V - Single Phase - 175 Ltr/min - 62m Head

The DAB JET 151 M is a self-priming centrifugal pump with excellent suction capacity even when there are air bubbles and small particles of sand in the water.

Applied especially for supplying water to domestic installations. Ideal for use in small-scale agriculture and gardening, limited industrial services and wherever self-priming operation is necessary.

Construction Includes Of The Pump

Cast Iron pump body and motor support.
Motor support in die-cast aluminium for Jet 62-82-102-112-92-132.
Technopolymer impeller, diffuser, Venturi tube and sand guard.
Stainless Steel pressure discs.
Carbon/ceramic mechanical seal.

Construction Features Of The Motor

Induction motor, closed and cooled with external ventilation.
Rotor mounted on oversized greased sealed-for-life ball bearings to ensure silent running and long life.
Built-in thermal and current overload protection and a capacitor permanently in circuit in the single-phase version.
Three-phase motors should be protected with a appropriate overload protection complying with the regulations in force.
Manufactured according to CEI 2-3 and CEI 61-69 standards (EN 60335-2-41).
Motor protection: IP44
Terminal box protection: IP55
Insulation class: F

TECHNICAL DATA

- Operating range: from 0,4 to 10,5 m3/h with head up to 62 metres

- Liquid quality requirements: clean, free from solids or abrasive substances, non viscous,
non aggressive, non crystallized, chemically neutral, close to the characteristics of water.

- Liquid temperature range:
from 0°C to +35°C for domestic use (EN 60335-2-41)
from 0°C to +40°C for other uses

- Maximum ambient temperature: +40°C

- Maximum operating pressure:
6 Bar. (600 kPa) for Jet 62-82-102-112-92-132
8 Bar. (800 kPa) for Jet 200-300-151-251

- Installation: fixed in a horizontal position

The DAB JET 151 M Self-Priming Centrifugal Pump - 240v - Single Phase - 175 Ltr/min. is a Centrifugal Pump item. Voltage for this item is 240V. It has an actual flow rate of 175 Ltr/min. The maximum head for this pump is 62m. This is a Surface Mounted pump which can be suitable when the pump can sit in a dry, accessible location and draw liquid in via a suction pipe or hose.

Key Product Features and Use

• Flow rate: 175 Ltr/min
• Water type: Clean or Discoloured
• Voltage: 240V
• Maximum head: 62m

Real-world product applications

• Drawing water from shallow sources such as tanks and sumps
• General water transfer where suction lift may be required
• Supporting site drainage and utility pumping duties
• Supplying water for irrigation and washdown systems
• Feeding water to distribution pipework
