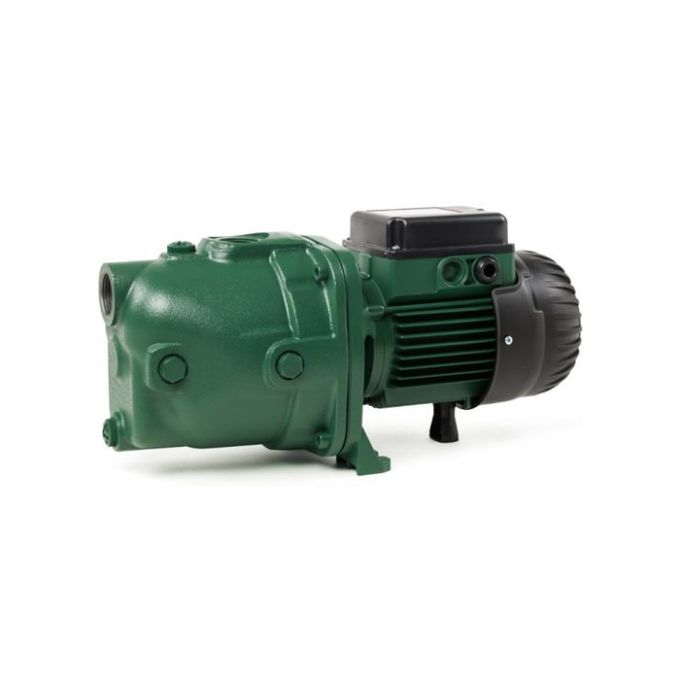

DAB - JET 151 T-IE3 Self-Priming Centrifugal Pump - 415V - Three Phase - 175 Ltr/min - 400V - 62m Head

The DAB JET 151 is a self-priming centrifugal pump with excellent suction capacity, Even where there are air bubbles and small particles of sand in the water.

The DAB JET 151 is especially appropriate for supplying water to domestic installations, It's also ideal for small-scale agricultural and gardening installations, Even limited industrial applications where a small self-priming peripheral type pump is required.

Construction Includes Of The Pump

Cast Iron pump body and motor support.
Motor support in die-cast aluminium for Jet 62-82-102-112-92-132.
Technopolymer impeller, diffuser, Venturi tube and sand guard.
Stainless Steel pressure discs.
Carbon/ceramic mechanical seal.

Constructional includes of the motor

Induction motor, closed and cooled with external ventilation.
Rotor mounted on oversized greased sealed-for-life ball bearings to ensure silent running and long life.
Built-in thermal and current overload protection and a capacitor permanently in circuit in the single-phase version.
Three-phase motors should be protected with a suitable overload protection complying with the regulations in force.
Manufactured according to CEI 2-3 and CEI 61-69 standards (EN 60335-2-41).
Motor protection: IP44
Terminal box protection: IP55
Insulation class: F

The DAB JET 151 T-IE3 Self-Priming Centrifugal Pump - 415v - Three Phase - 175 Ltr/min. is a Centrifugal Pump item. Voltage for this item is 400V. It has an actual flow rate of 175 Ltr/min. The maximum head for this pump is 62m. This is a Surface Mounted pump which can be suitable when the pump can sit in a dry, accessible location and draw liquid in via a suction pipe or hose.

Key Product Features and Use

• Flow rate: 175 Ltr/min
• Water type: Clean or Discoloured
• Voltage: 400V
• Maximum head: 62m

Real-world product applications

• Drawing water from shallow sources such as tanks and sumps
• General water transfer where suction lift may be required
• Supporting site drainage and utility pumping duties
• Supplying water for irrigation and washdown systems
• Feeding water to distribution pipework
