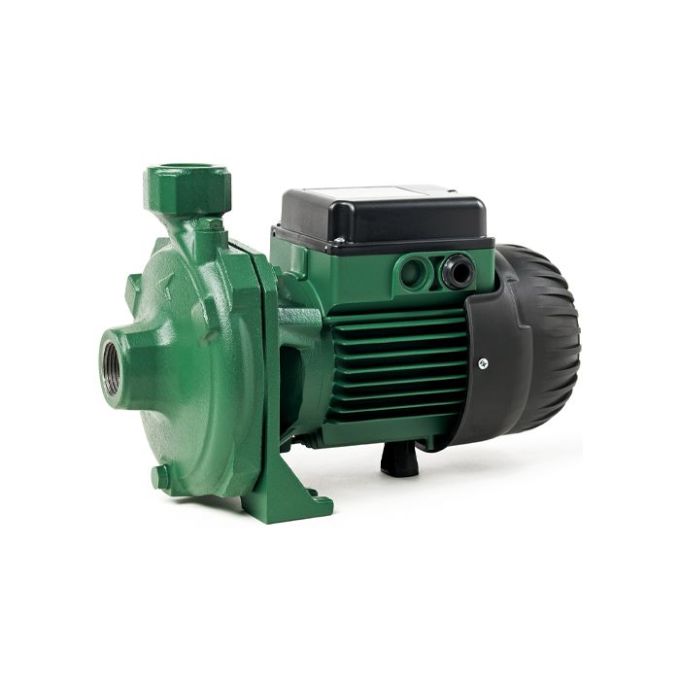

DAB - K 28/500 T-IE3 Single Impeller - Centrifugal Pump - 415V - Three Phase - 400V

Product Applications

Single impeller centrifugal pump appropriate for domestic, civil, industrial and agricultural installations and for decanting, mixing and irrigating uses.

Construcitonal Includes Of The Pump

Cast Iron pump body and motor support.
Technopolymer impeller for K 20/41, K 30/70, K 30/100, K 36/100, K 12/200, K 36/200, K 40/200, K 55/200.
Cast Iron impeller for K 14/400, K 11/500, K 18/500, K 28/500, K 40/400, K 50/400, K 30/800, K 40/800, K 50/800, K 20/1200, K 25/1200, K 35/1200.
Carbon/ceramic mechanical seal.

Construcitonal Features Of The Motor

Induction motor, closed and cooled with external ventilation.
Rotor mounted on oversized greased sealed-for-life ball bearings to ensure silent running and long life.
Built-in thermal and current overload protection and a capacitor permanently in circuit in the single-phase version.
Three-phase motors should be protected with a suitable overload protection complying with the regulations in force.
Manufactured according to CEI 2-3 standards.
Motor protection: IP44 (IP 55 for motor to 2,2 - 3 - 4 - 5,5 - 7,5 - 9,2 - 11 kW)
Terminal box protection: IP55
Insulation class: F

The DAB K 28/500 T-IE3 Single Impeller Centrifugal Pump - 415v - Three Phase is a Centrifugal Pump item. Voltage for this item is 400V. This is a Surface Mounted pump which can be suitable when the pump can sit in a dry, accessible location and draw liquid in via a suction pipe or hose.

Key Product Features and Use

• Water type: Clean or Discoloured
• Voltage: 400V

Real-world product applications

• General water transfer between tanks and systems
• Supplying water for domestic or light commercial use
• Supporting irrigation and washdown duties
• Circulating or transferring water in utility applications
• Assisting with general pumping and transfer tasks
