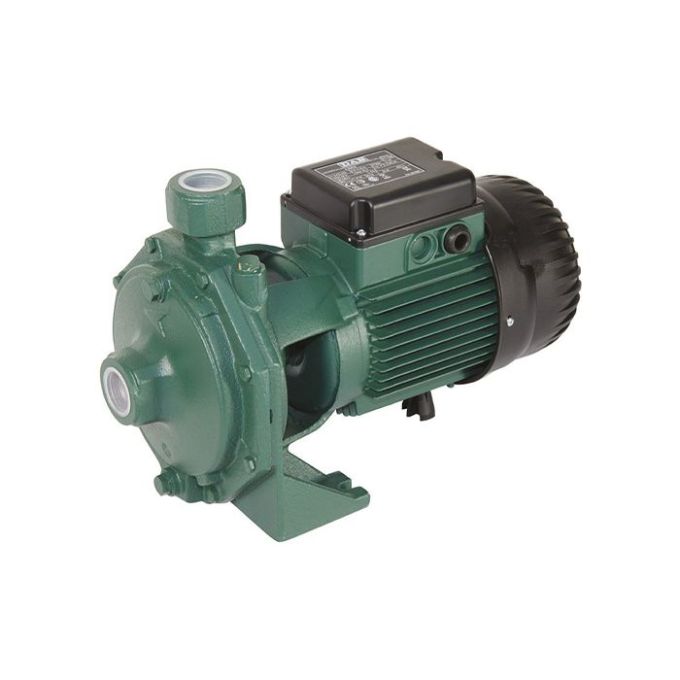

DAB - K 66/100 T-IE3 Twin Impeller - Centrifugal Pump - 415V - Three Phase - 400V

Product Applications

Twin-impeller centrifugal pump engineered for use in pressurisation units for water supply systems and for supplying pressurised tanks.

Appropriate also for sprinkling irrigation and other water supply applications.

Construction Features Of The Pump

Cast Iron pump body and motor support. Technopolymer impeller. Carbon/ceramic mechanical seal.

Construction Features Of The Motor

Induction motor, closed and cooled with external ventilation. Rotor mounted on oversized greased sealed-for-life ball bearings to ensure silent running and long life.

Built-in thermal and current overload protection and a capacitor permanently in circuit in the single-phase version. Three-phase motors should be protected with a appropriate overload protection complying with the regulations in force.

Manufactured according to CEI 2-3 standards. Motor protection: IP55, IP 44 for the models K 35/40, K 45/50, K 55/50, K 35/100, K 40/100.

Terminal box protection: IP55 Insulation class: F

The DAB K 66/100 T-IE3 Twin Impeller Centrifugal Pump - 415v - Three Phase is a Centrifugal Pump item. Voltage for this item is 400V. This is a Surface Mounted pump which can be suitable when the pump can sit in a dry, accessible location and draw liquid in via a suction pipe or hose.

Key Product Features and Use

• Water type: Clean or Discoloured
• Voltage: 400V

Real-world product applications

• General water transfer between tanks and systems
• Supplying water for domestic or light commercial use
• Supporting irrigation and washdown duties
• Circulating or transferring water in utility applications
• Assisting with general pumping and transfer tasks
