Single impeller centrifugal pump appropriate for domestic, civil, industrial and agricultural installations and for decanting, mixing and irrigating uses. Cast Iron pump body and motor support. Technopolymer or Cast Iron impeller (depending on the models). Stainless Steel driving shaft.
Carbon/ceramic mechanical seal. Asynchronous, closed motor, cooled by external ventilation. Built-in thermal and current overload protection and a capacitor permanently on in the singlephase version.
For the protection of the three-phase motor it is advisable to use a suitable overload protection complying with the regulations in force.
Product Applications
Single impeller centrifugal pump
Construction Includes Of The Pump
Cast Iron pump body and motor support. Technopolymer impeller for K 20/41, K 30/70, K 30/100, K 36/100, K 12/200, K 36/200, K 40/200, K 55/200. Cast Iron impeller for K 14/400, K 11/500, K 18/500, K 28/500, K 40/400, K 50/400, K 30/800, K 40/800, K 50/800, K 20/1200, K 25/1200, K 35/1200. Carbon/ceramic mechanical seal.
Construction Features Of The Motor
Induction motor, closed and cooled with external ventilation.Rotor mounted on oversized greased sealed-for-life ball bearings to ensure silent running and long life.Built-in thermal and current overload protection and a capacitor permanently in circuit in the single-phase version.Three-phase motors should be protected with a suitable overload protection complying with the regulations in force.Manufactured according to CEI 2-3 standards.Motor protection: IP44 (IP 55 for motor to 2,2 - 3 - 4 - 5,5 - 7,5 - 9,2 - 11 kW)Terminal box protection: IP55Insulation class: F

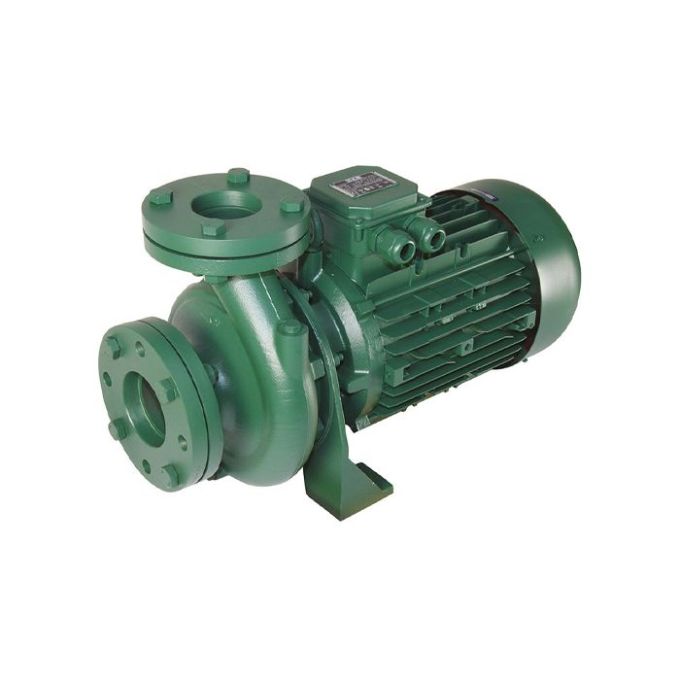

The DAB K 40/400 T-IE3 Single-Impeller Centrifugal Pump - 415v - Three Phase is a Centrifugal Pump item. Voltage for this item is 400V. This is a Surface Mounted pump which can be suitable when the pump can sit in a dry, accessible location and draw liquid in via a suction pipe or hose.
Key Product Features and Use
- Water type: Clean or Discoloured
- Voltage: 400V
Real-world product applications
- General water transfer between tanks and systems
- Supplying water for domestic or light commercial use
- Supporting irrigation and washdown duties
- Circulating or transferring water in utility applications
- Assisting with general pumping and transfer tasks
DAB Pumps is an Italian water-pump manufacturer founded in 1975. They produce reliable products, technically advanced, easy to install and efficient, ensuring high energy savings in heating and air conditioning, water supply and pressurisation, irrigation and gardening, use of rain water, draining, collection and disposal of waste water, circulation and filtration of swimming pool water. All our DAB products, including spare parts, are guaranteed against construction material and processing defects for a period of 1 year from purchase, terms apply.
This item is now obsolete. Please view our alternatives below.
