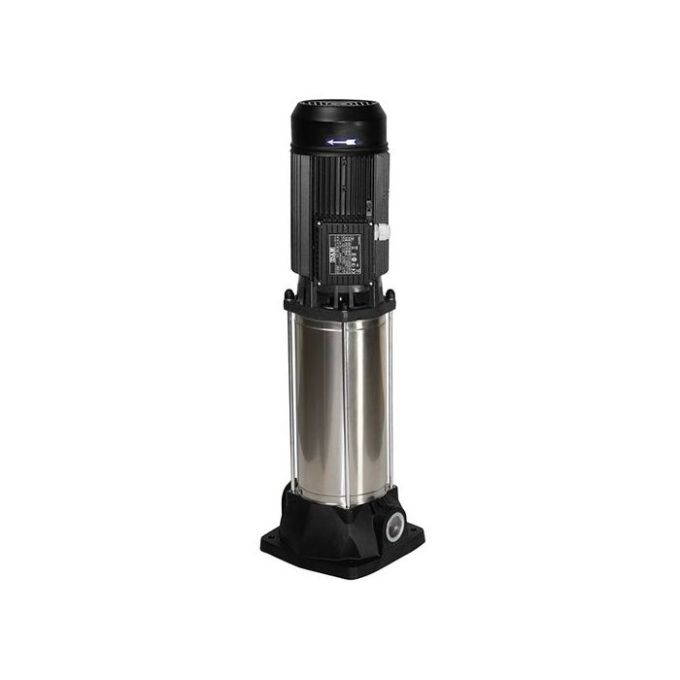

DAB - KVC 35-120 T-IE3 Centrifugal Multi-Stage Pump - 415V - Three Phase - 400V

Product Applications

Vertical multistage centrifugal pump appropriate for small to medium user water systems. Suitable for pressurization units, filling of pressure vessels, sprinkler and watering systems, fire-fighting and washing systems, channelling of condensate and cooling water. InNOVAtive and robust design.

Construction Includes Of The Pump

KVC: Technopolymer delivery and suction bodies, and in-line suction and delivery ports with threaded metal insert.
KVCX: technopolymer suction body with threaded metal insert; Stainless Steel threaded delivery port on pump liner.
Impellers, diffuser bodies and diffusers in technopolymer, fully rust-proof. AISI 304 Stainless Steel pump liner, adjustment rings and seal disc. Carbon/ceramic mechanical seal, fitted on the AISI 303 stainless-steel drive shaft extension.

Construction Features Of The Motor

Closed asynchronous type, external ventilation cooling. Rotor running on permanently lubricated ball bearings, oversized to ensure low noise and durability. Standard built-in thermo-amperometric protection. Capacitor permanently fitted on single phase versions. Overload protection to be provided by the user for the three-phase version. Construction according to CEI 2-3 / CEI 61-69 (EN 60335-2-41).

The DAB KVC 35-120 T-IE3 Centrifugal Multi-Stage Pump - 415v - Three Phase is a Centrifugal Pump item. Voltage for this item is 400V. This is a Surface Mounted pump which can be suitable when the pump can sit in a dry, accessible location and draw liquid in via a suction pipe or hose.

Key Product Features and Use

• Water type: Clean or Discoloured
• Voltage: 400V

Real-world product applications

• Pressure boosting for water supply systems
• Feeding distribution networks requiring higher pressure
• Supporting irrigation and washdown water delivery
• General clean-water transfer for utility systems
• Supplying water to buildings and equipment
