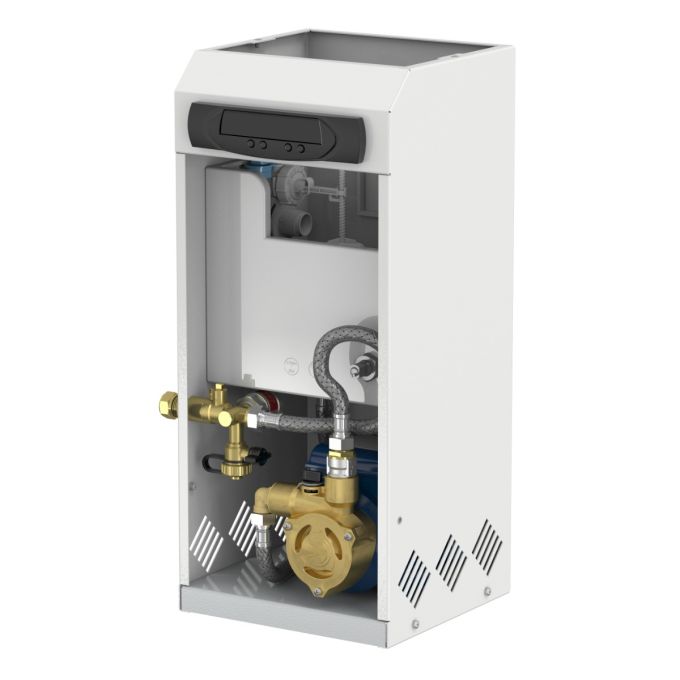

Flamco - Pro PDm 1.0 Wall Mounted Digital Pressurization Unit - 2.5 Bar - 230V

Flamco - Pro PDm 1.0 Wall Mounted Digital Pressurization Unit - 2.5 Bar - 230V - 21617

Compact and totally enclosed digital pressurisation units with electronic pressure transducer and user-friendly microprocessor for use on sealed system in order to provide a minimum system pressure requirement.

The Pro PDm is a wall mounted, volumetric flow rate (up to 12 l/min) top-up pressurisation unit with 4 litre internal break tank. Ideal for Industrial, commercial or large domestic applications. available as an option preset to 1.0 bar, 1.5 bar, 2.0 bar or 2.5 bar topup (Delivery) pressure).

Application:
Commercial, Industrial and Residential.
System Volume (Guide): < 50,000 litres.

• For system volumes up to 50,000 litres.
• Dry Run Protection.
• Anti-Seize Routine (Pump is pulsed for 2 seconds if inactive for 60 days, must be enabled at elapsed operating time of commissioning).
• Pressure setting in 0.1 bar increments.
• Self venting pumps and preset options to remove the need for conventional commissioning of the Pressurisation Unit.
• Preset to facilitate a plug and play system installation.
• Electric pump, 230V 50Hz 1ph.
• Colour: Grey (RAL 7016).
• System fill mode.
• Onscreen Service Reminder - 12 Months.
• MODBUS RTU Communication Protocol.
• Password protected.
• Bi-directional programming menu.
• Flood Protection (Pump Runtime Limiter, Excessive Start Alarm).
• Pump pulse option.
• Event logging: Alarm activations, Pump Run counter (activations per pump), Cumulative run timer (hours per pump), Electrical interruption.
• Volt free contacts: Common Alarm (N/C), High Pressure Alarm (N/O), Low Pressure Alarm (N/O), pressure sensor Health (N/O), Pump 1 Health (N/O), Pump 2 Health (N/O).
• Optional Additional Volt Free Contacts (Requires an additional factory fitted expansion board): Low Pressure Warning (N/O), High Pressure Warning (N/O), Low Water In Break Tank (N/O), Low Additive In Holding Tank (N/O), Pump 1 Run For Topup (N/O), Pump 2 Run For Topup (N/O).

Real-world product applications

• Boosting water pressure to multiple outlets in a building
• Maintaining stable pressure where demand varies
• Supplying water from storage tanks to distribution pipework
• Supporting general water supply and transfer systems
• Assisting with pressure control in utility installations

Key Product Features

• Wall-mounted digital pressurisation
• 2.5 bar. delivery setting for sealed circuits
• Microprocessor control and clear interface
• Compact footprint for small plantrooms
• Ideal for light commercial applications
• Water type: Clean or Discoloured
• Voltage: 230V

Flamco (est. 1956) is a Dutch manufacturer of HVAC and plumbing system components, including expansion vessels, air separators and pressurisation accessories. Their ranges are used in heating and chilled-water circuits and potable water systems across domestic and commercial installations.
