Jabsco - Mini Puppy Self-Priming Pump - 12V - 7.4 Ltr/min

Name: Jabsco - Mini Puppy Self-Priming Pump - 12V - 7.4 Ltr/min
Brand: Jabsco
SKU: 23620-4003
Price: 238.8 GBP
Availability: InStock

Part Number:

23620-4003

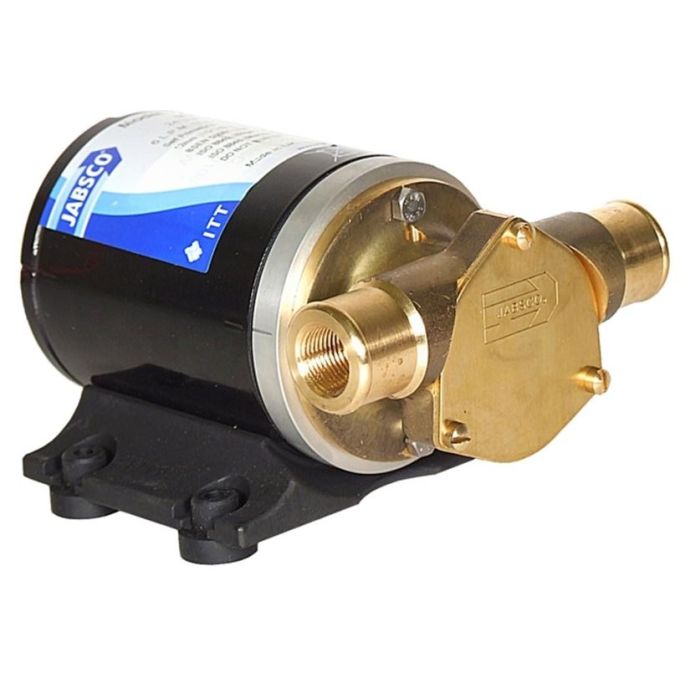

Jabsco Mini Puppy is a compact flexible-impeller pump within the Jabsco Puppy Series, designed for general-purpose pumping in marine environments.

View Description | Data Sheet(s)

This item is now obsolete. Please view our alternatives below.

£343.24 RRP £238.80 £199.00

Free Standard Delivery

Add to Wishlist

Compare

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Jabsco Mini Puppy is a compact flexible-impeller pump within the Jabsco Puppy Series, designed for general-purpose pumping in marine environments. Flexible-impeller hydraulics provide self-priming and smooth flow (variant dependent).

Typical applications

General-purpose seawater and freshwater transfer (duty dependent)
Bilge transfer and washdown support (system dependent)
Livewell circulation and general onboard pumping

The Jabsco Mini Puppy Self-Priming Pump - 12v is a Self Priming item. Voltage for this item is 12V. It has an actual flow rate of 7.4 Ltr/min. This is a Surface Mounted pump which can be suitable when the pump can sit in a dry, accessible location and draw liquid in via a suction pipe or hose.

The operating pressure of this is 2 bar.

Real-world product applications

Drawing water from shallow sources such as tanks and sumps
General water transfer where suction lift may be required
Supporting site drainage and utility pumping duties
Supplying water for irrigation and washdown systems
Feeding water to distribution pipework

Key Product Features

Connections: - for 12.5mm (½") bore hose
Dimensions: - 165mm long, 84mm wide, 83mm high
Fuse Size: - 10(amp)
Output: - up to 7.4 litres/minute (1.63 gallons/minute)
Light duty continuously rated bilge and deck wash pump
Self priming up to 1.5m vertical lift
Simple, fully serviceable design with few wearing parts
Can generate pressures up to 2 bar. (30 psi)
Bronze body, Stainless Steel shaft
Packaged Dimensions: L:24.00 x H:11.00 x W:13.00cm
Flow rate: 7.4 Ltr/min
Water type: Clean or Discoloured
Voltage: 12V

Jabsco (est. 1938) manufactures pumps for marine and industrial fluid handling. Their ranges include diaphragm pumps, flexible impeller pumps and washdown/bilge solutions. Typical applications cover freshwater pressure, bilge pumping, fuel or liquid transfer and general marine service duties.

More Information
Price	£199.00
Manufacturer	Jabsco
Warranty	1 year guarantee
Dimensions	L165mm x W84mm x H83mm
Bars	2 bar
Electrical supply	12V
AC Power	Single Phase
Flow Rate	7.4 Ltr/min
Water type	Clean or Discoloured
Switch	None
Duty Type	Domestic
Submersible vs Surface Mounted	Surface Mounted
Pump Type Filter	Self-Priming
Next Day Delivery	No
Connection Size	1/2 inch
Manufacturers Part Number	23620-4003
