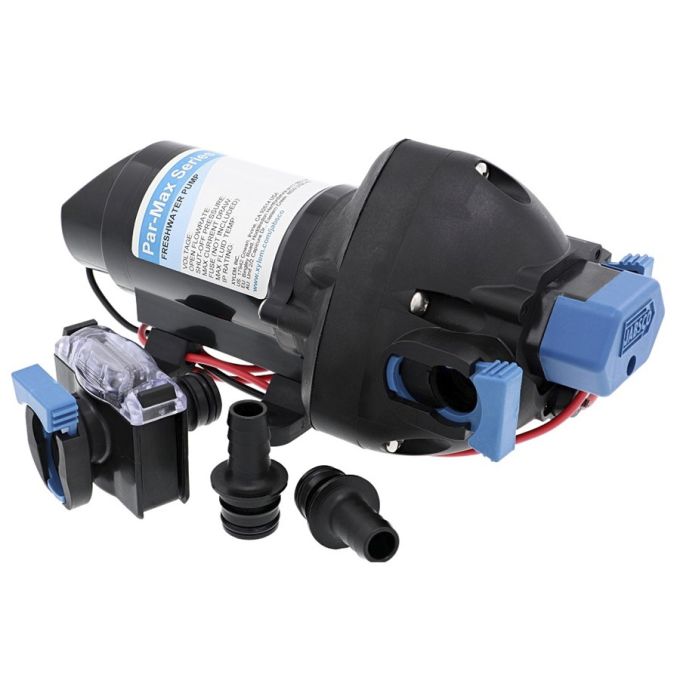

Jabsco - Par Max 3 pressure-controlled Pump - 25psi - 11 Ltr/min - 24 Volt D.C.

Name: Jabsco - Par Max 3 pressure-controlled Pump - 25psi - 11 Ltr/min - 24 Volt D.C.
Brand: Jabsco
SKU: 31395-2524-3A
Price: 94.8 GBP
Availability: InStock

Part Number:

31395-2524-3A

Jabsco PAR-MAX 3 is a pressure-controlled diaphragm pump designed for onboard freshwater delivery, providing approximately 3 GPM (11 LPM) and up to 50 psi (3.5 bar) (variant dependent).

View Description | Data Sheet(s)

This item is now obsolete. Please view our alternatives below.

£94.80 £79.00

In stock

Free Standard Delivery

Add to Wishlist

Compare

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Jabsco PAR-MAX 3 is a pressure-controlled diaphragm pump designed for onboard freshwater delivery, providing approximately 3 GPM (11 LPM) and up to 50 psi (3.5 bar) (variant dependent).

Typical applications

Boat freshwater pressure systems
Deck/cockpit washdown (system dependent)
General onboard pressurised water delivery

The Jabsco Par Max 3 pressure-controlled pump - 25psi - 11 Ltr/min. - 24 Volt D.C. is a Self-Priming item. Voltage for this item is 24V. It has an actual flow rate of 11 Ltr/min. This is a Surface Mounted pump which can be suitable when the pump can sit in a dry, accessible location and draw liquid in via a suction pipe or hose.

Key Product Features

Connections: for 13mm (1/2") bore hose
Dimensions: 230mm long, 152mm wide, 110mm high
Fuse size: 10 (amp)
Output: 11 litres per minute open flow
Pressure Switch: cuts in at 1.0 bar. and cuts out at 1.7 Bar.
Efficient, high-flow, self-priming pump serving 2 or more outlets
Multi-Diaphragm design self primes to 1.8m vertical lift, can run dry without damage
Supplied with snap-in ports for hose 1/2" (13mm) and strainer
Quiet running
Motor protected by automatic thermal overload cut-out
Includes bypass feature to provide smooth, quiet flow
Other snap-in ports for hose connections are acailable
Flow rate: 11 Ltr/min
Water type: Clean Water
Voltage: 24V

Jabsco (est. 1938) manufactures pumps for marine and industrial fluid handling. Their ranges include diaphragm pumps, flexible impeller pumps and washdown/bilge solutions. Typical applications cover freshwater pressure, bilge pumping, fuel or liquid transfer and general marine service duties.

More Information
Price	£79.00
Manufacturer	Jabsco
Warranty	1 year guarantee
Electrical supply	24V
AC Power	Single Phase
Flow Rate	11 Ltr/min
Water type	Clean Water
Duty Type	Domestic
Submersible vs Surface Mounted	Surface Mounted
Pump Type Filter	Self-Priming
