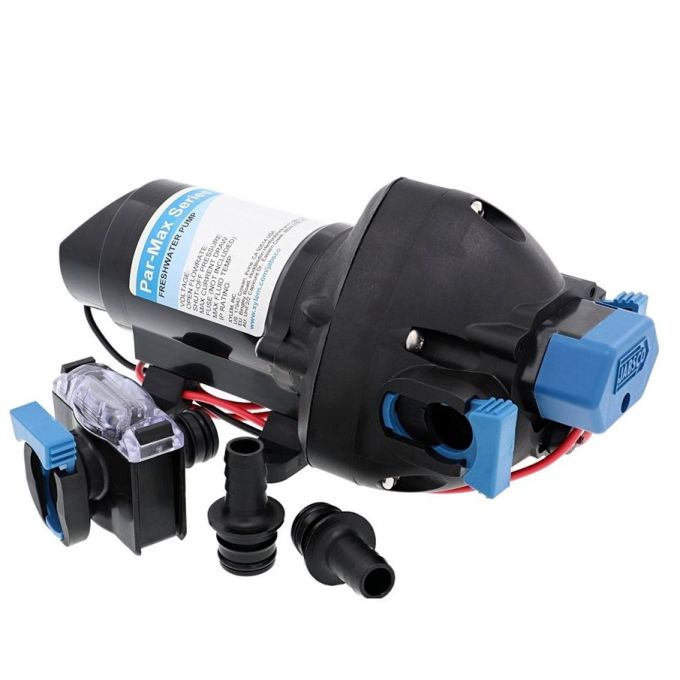

Jabsco - Par Max 3 Pressure-Controlled Pump - 40psi - 11 Ltr/min - 12 Volt D.C.

The Jabsco Par Max 3 Pressure-Controlled Pump - 40psi - 11 Ltr/min. - 12 Volt D.C. is a Self-Priming item. Voltage for this item is 12V. It has an actual flow rate of 11 Ltr/min. This is a Surface Mounted pump which can be suitable when the pump can sit in a dry, accessible location and draw liquid in via a suction pipe or hose. It features a Pressure Switch switch.

Key Product Features

• Connections: for 13mm (½") bore hose
• Dimensions: 230mm long, 152mm wide, 110mm high
• Fuse Size: 10(amp)
• Maximum Current: 4.4(amps)
• Output: 11 litres/minute (2.4 gallons/minute) open flow
• PRESSURE SWITCH - cuts in at 1.4bar (20psi) - cuts out at 2.8bar (40psi)
• Efficient, high-flow, self-priming pump serving 2 or more outlets
• Multi-diaphragm design self primes to 1.8m vertical lift, can run dry without damage
• Supplied with snap-in ports for hose 1/2" (13mm) and Strainer
• Quiet running
• Motor protected by automatic thermal overload cut-out
• Includes a bypass feature to provide a smooth, quiet flow
• Other snap-in ports for hose connections are available. For Hep20 connections, use CW193W in conjunction with 30649-1000 or 30655-1000
• Packaged Dimensions: L:17.00 x H:11.00 x W:34.00cm
• Actual Weight: 1.80 Kg (Approx. 2.30 Kg packed)
• Flow rate: 11 Ltr/min
• Water type: Clean Water
• Voltage: 12V

Jabsco (est. 1938) manufactures pumps for marine and industrial fluid handling. Their ranges include diaphragm pumps, flexible impeller pumps and washdown/bilge solutions. Typical applications cover freshwater pressure, bilge pumping, fuel or liquid transfer and general marine service duties.
