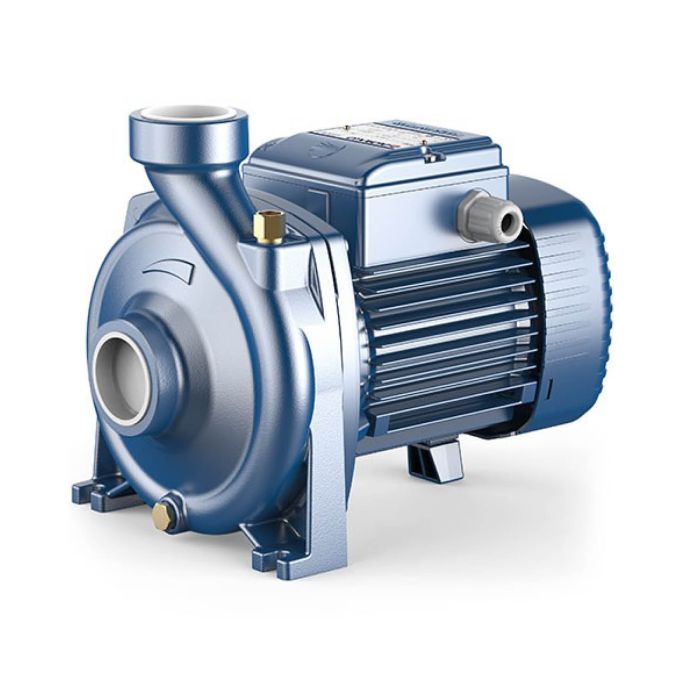

Pedrollo - HF 5B Centrifugal Electro Pump - 3 Phase

The Pedrollo HF 5B Centrifugal Electro-Pump is designed for clean water handling across civil, agricultural and industrial applications where high flow performance is required. Built for reliable operation, this surface-mounted centrifugal pump is well suited to demanding water transfer duties where strong flow rates and mid to low head performance are important.

The HF 5B range is commonly used for flood irrigation, spray irrigation, drawing water from lakes, rivers and wells, and a wide variety of industrial applications requiring efficient water movement. Its high-efficiency design makes it a practical option for installations where dependable performance and continuous duty capability are essential.

For correct installation and long-term protection, the pump should be fitted in an enclosed environment or at minimum in a location sheltered from inclement weather.

Key Product Features

• Pedrollo HF 5B centrifugal electro-pump for clean water applications
• Suitable for civil, agricultural and industrial use
• Designed for high flow rates with mid to low head performance
• Ideal for flood irrigation and spray irrigation duties
• Suitable for drawing water from lakes, rivers and wells
• Engineered for continuous duty operation
• For installation in enclosed or weather-sheltered environments
• Pump Type: Single impeller centrifugal surface pump
• Liquid temperature range: -10 °C to 90 °C
• Maximum suction lift: 7 m
• Maximum ambient temperature: 40 °C
• Connection type: Gas threaded
• Suction connection: 2''
• Delivery connection: 2''
• Flow rate: 100 - 500 l/min
• Head range: 13.2 - 5 m
• Maximum head: 13.7 m
• Voltage: 220-230 V
• Phases: 1
• Frequency: 50 Hz
• Speed: 2900 rpm
• Rated power output: 0.75 kW
• Input power P1: 1.05 kW
• Rated current: 5 A
• Capacitor: 20 µF
• Capacitor voltage: 450 V
• Insulation class: F
• Protection rating: IPX4

Pedrollo (est. 1974) is an Italian manufacturer offering surface and submersible pumps including centrifugal, self-priming, multistage, borehole and drainage ranges. Pedrollo pumps are widely used for domestic water supply, garden and agricultural irrigation, pressure boosting, clean-water transfer and light commercial installations.
