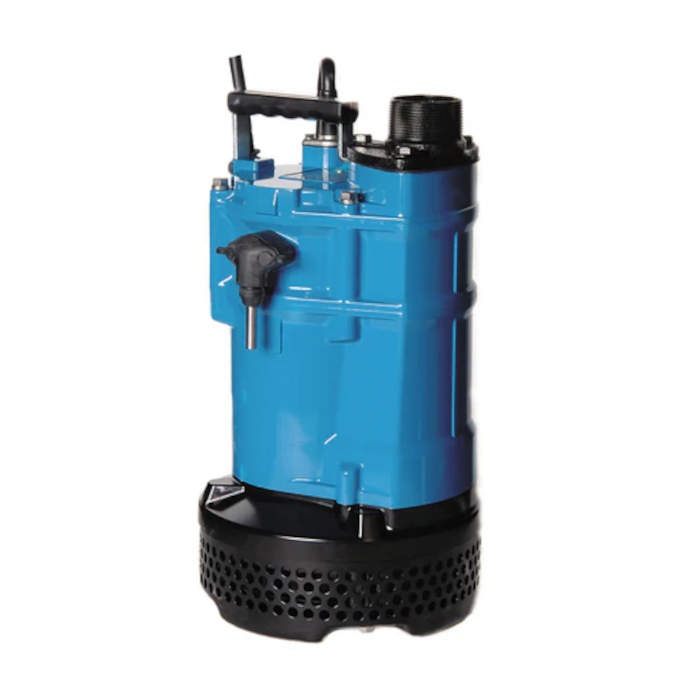

Tsurumi - KTVE22.2 Drainage Pump - 400V - Three Phase - Automatic

The Tsurumi - KTVE22.2 is a heavy-duty automatic submersible drainage Pump - 10-10-1037 designed for demanding site dewatering Uses. This robust 400V three-phase pump offers efficient and reliable dynamic performance without the need for external control panels or float switches.

TheKTVEpumps offer an automatic option to theKTVseries, without the need for external control panels and cumbersome float switches. A sensor probe is mounted in a durable, moulded rubber bracket and, for added protection, it is positioned within the footprint of the pump base. Once the water level reaches the probe, the pump will start and continue to operate for one minute after the water falls below it. However, if the water level touches the probe within this time, the "stop" signal is cancelled and the pump continues to run until the water is cleared. To enable a lower "on level" (by a further 90mm), the sensor probe can be lengthened by fitting the electrode extender, which is an optional extra.

Special use option: IDS (individually screened cable) on 3.7KW and 5.5KW models. (Please request a quotation)

Automatic Operation:

The KTVE22.2 features an innovative built-in sensor probe mounted in a durable rubber bracket within the pump base footprint. This sensor automatically starts the pump when water reaches the probe level and continues operation for one minute after the water level drops below it.

dynamic performance:

• Maximum flow rate: 525 litres per minute
• Maximum head: 24 metres
• Motor power: 2.2 kW
• Voltage: 400V three-phase

Construction:

• Outlet: 2" BSPM (British Standard Pipe Male) and 50mm
• Free passage: 8.5mm
• Dimensions: 240mm diameter x 486mm height
• Dry weight: 25 kg

Durability:

The pump features a cast-iron casing and motor frame, with a chromium iron open impeller for exceptional wear resistance against sand, silt, and slurry.

The Tsurumi - KTVE22.2 is ideal for:

• Construction sites
• Quarries
• Industrial processes
• Tunnelling
• Mining operations

Its robust design and automatic operation make it particularly suitable for continuous-duty pumping in challenging environments where water may contain suspended solids.

Real-world product applications

• Dewatering areas such as pits, sumps, and low points
• Draining water from site works and excavations
• Removing unwanted water from tanks and containers
• Supporting general drainage and clean-up tasks
• Assisting with temporary water transfer

Key Product Features

• Flow rate: 525 Ltr/min
• Water type: Dirty Water
• Voltage: 400V
• Maximum head: 24m

Tsurumi (est. 1924) is a Japanese manufacturer specialising in heavy-duty submersible pumps for drainage, construction dewatering and wastewater. Product ranges include contractor dewatering, slurry and sewage pumps. Common applications include site dewatering, civil engineering, tunnelling, quarrying and public wastewater projects requiring solids handling.
