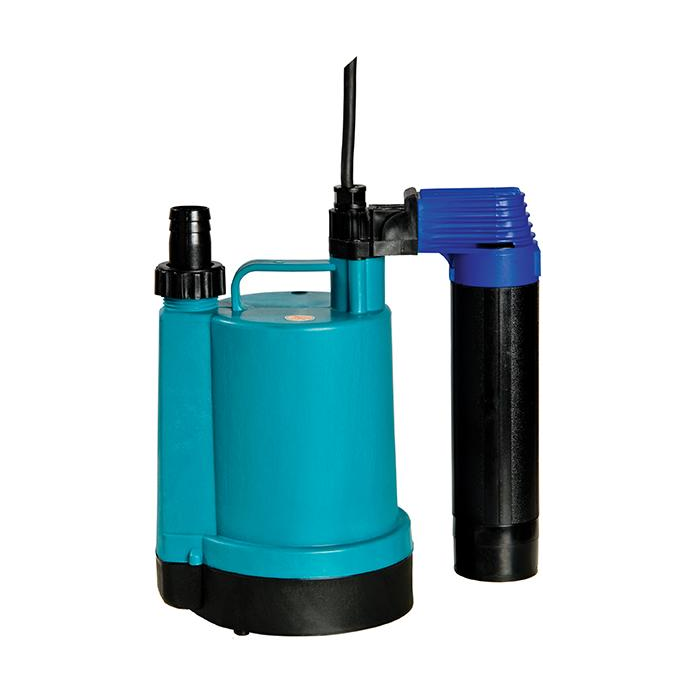

The Tsurumi - BPS-100V Submersible Drainage Pump - 15-10-1019 (Part No. 15-10-1019) is a versatile and efficient automatic pump designed for a variety of drainage Uses. This 230V model offers a combination of reliability, dynamic performance, and convenience for both domestic and light industrial use.
TheBPSseries has a water cooled, top discharge design for Uses where space is limited, operating while partially submerged or during short periods of dry running. Available as manual or with a pendant float switch, for automatic operation. TheBPS-100A(V)automatic model incorporates a tube type float switch for narrow sump Uses. Manual versions of modelsBPS-80andBPS-100are fitted with residue strainers which enables the pumping of water down to 3mm. For use in domestic, trade and industrial Uses, but not recommended for ponds or water features.
Key Product InformationProduct Engineering Information
The BPS-100V is manufactured using durable thermoplastic materials, making it suitable for pumping clean to slightly dirty water. It features a top discharge design, allowing for use in partial immersion scenarios or areas with limited space.
Performance
- Maximum flow rate: 70 litres per minute
- Maximum head: 6.5 metres
- Power: 0.10 kW
Automatic Operation
This model is equipped with a tube-type float switch, specifically designed for narrow sump Uses. The pump automatically activates when the water level reaches approximately 300mm and shuts off at 150mm.
Durability
The pump incorporates a 304 Stainless Steel shaft, enhancing its durability and resistance to corrosion. It also features a carbon/ceramic mechanical seal housed in an intermediate oil chamber with an inner lip seal, providing excellent wear resistance and protection during short periods of dry running.
Versatility
The BPS-100V comes with both 19mm and 25mm outlet options, allowing for flexibility in various installation scenarios.
UsesThis submersible pump is ideal for:
- Basement drainage
- Flood control
- Light industrial use
- Domestic water removal
While it offers excellent reliability for many Uses, it is not recommended for use in ponds or water features.
Additional Information- Supplied with 10 metres of heavy-duty rubber power cable
- Free passage: 3mm
- Dimensions (W x L x H): 134 x 155 x 250 mm
- Dry weight: 2.70 kg
The Tsurumi - BPS-100V combines efficient dynamic performance with user-friendly features, making it an excellent choice for those seeking a reliable automatic submersible drainage pump for various Uses.
Real-world product applications
- Dewatering flooded areas such as basements and pits
- Draining water from excavations, trenches, and site works
- Removing water from sumps, chambers, and collection points
- Supporting general drainage and clean-up tasks
- Transferring water from tanks or containers
Key Product Features
- Flow rate: 70 Ltr/min
- Water type: Clean or Discoloured
- Voltage: 230V
- Maximum head: 6.5m
Tsurumi (est. 1924) is a Japanese manufacturer specialising in heavy-duty submersible pumps for drainage, construction dewatering and wastewater. Product ranges include contractor dewatering, slurry and sewage pumps. Common applications include site dewatering, civil engineering, tunnelling, quarrying and public wastewater projects requiring solids handling.
This item is now obsolete. Please view our alternatives below.
