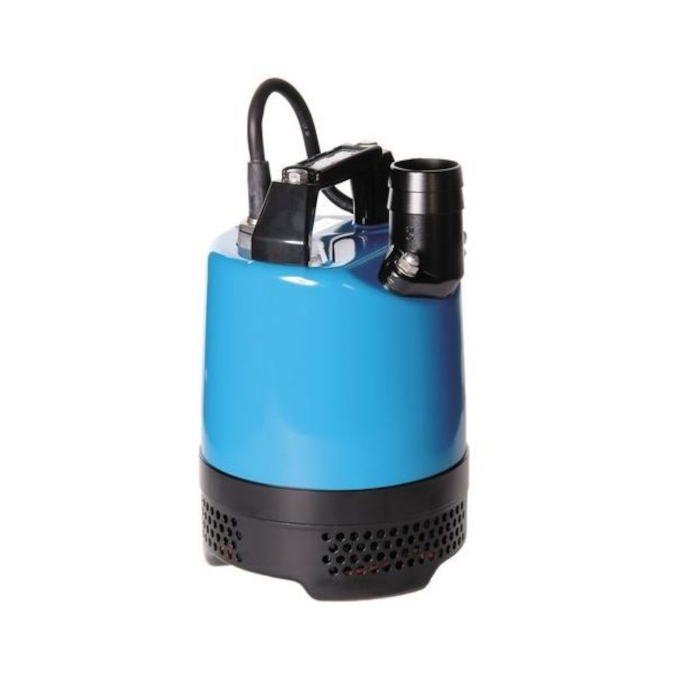

Tsurumi - LB480 Drainage Pump - AGMA - 230V - Automatic

The Tsurumi - LB-480 Automatic AGMA 230V is a compact and powerful submersible drainage Pump - 10-10-1050 designed for efficient water removal.

For the automatic control of water levels, LB480 and LB800 are available with sensor and float switches:

Theswitch has two 304 Stainless Steel probes that are encapsulated in moulded rubber and it is designed for portable Uses. The compact design and precise water level control also makes it suitable for fixed installations and narrow or shallow sumps. During use, when both probes touch water, the pump will start and continue to operate for one minute after the water level drops. However, if the water touches both probes again within this time, the pump continues pumping for another minute and will continue like this on demand, so keeping the water level constantly below the level of the probes at all times. The off level can be as low as the suction cover at 20mm, depending on the sump size or area being drained. Probes can be lengthened by 70mm or 170mm, with, to enable a lower "on" and "off" level.

Thefloat-switch has a power cable connected to a waterproof case that contains a ball bearing actuated switch and is designed for portable and fixed installations. The cable is clamped to the pump, with a small amount of adjustment to alter the "on" and "off" level.

The float-switch has a switch actuated by a floating cylinder, housed within a tube. Compact, with fixed "on" and "off" levels for precise level control, it is intended for narrow sumps and fixed installations.

• Motor Output: 0.48 KW (approximately 2/3 HP)
• Voltage: 230V
• Phase: Single-phase
• Discharge Bore: 50mm (2 inches)
• Maximum Flow Rate: 225 litres per minute
• Maximum Head: 11 metres
• Free Passage: 6mm

• Dimensions: 187 x 353mm (diameter x height)
• Dry Weight: 10.7 kg

• Slimline Design: The pump's compact size allows it to fit into 8-inch pipes, making it versatile for various Uses
• Top Discharge: This feature provides maximum motor cooling efficiency, enabling continuous duty operation at low water levels and extended dry-run capability
• Durable Construction: Built with robust materials for long-lasting dynamic performance in demanding conditions
• Manual Operation: This version is manually operated, without an automatic float switch

The LB-480 is capable of handling dirty water and is suitable for various Uses such as construction site dewatering, flood control, and general water transfer tasks. Its ability to operate at low water levels and withstand dry running makes it particularly useful in challenging environments. This pump combines powerful dynamic performance with easy handling, making it a popular choice for contractors and other professionals who require reliable water removal solutions.

Real-world product applications

• Dewatering areas such as pits, sumps, and low points
• Draining water from site works and excavations
• Removing unwanted water from tanks and containers
• Supporting general drainage and clean-up tasks
• Assisting with temporary water transfer

Key Product Features

• Flow rate: 225 Ltr/min
• Water type: Dirty Water
• Voltage: 230V
• Maximum head: 11m

Tsurumi (est. 1924) is a Japanese manufacturer specialising in heavy-duty submersible pumps for drainage, construction dewatering and wastewater. Product ranges include contractor dewatering, slurry and sewage pumps. Common applications include site dewatering, civil engineering, tunnelling, quarrying and public wastewater projects requiring solids handling.
