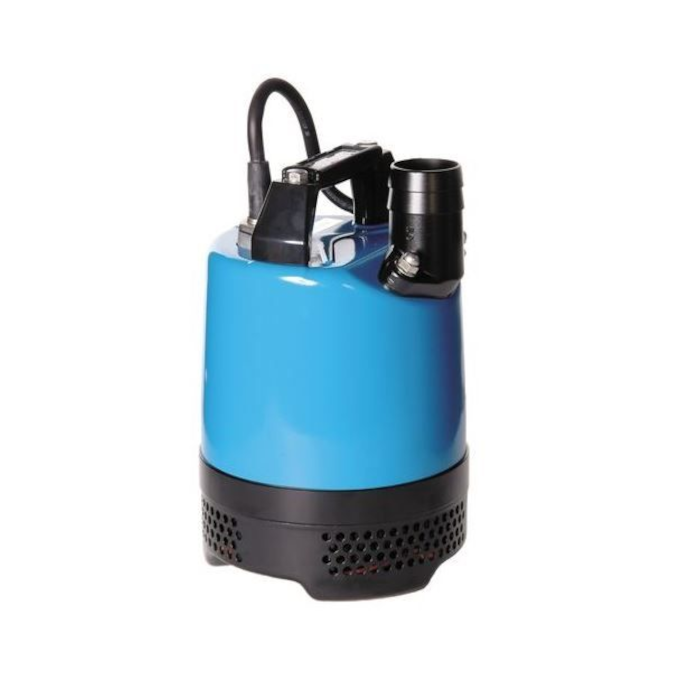

Tsurumi - LB480 Drainage Pump - 230V - Manual

The Tsurumi - LB-480 Manual 230V is a compact and powerful submersible drainage Pump - 10-10-1118 designed for efficient water removal.

TheLBseries is a lightweight and robust range of single-phase contractors' pumps used widely by tool rental companies, utilities and in the construction industry. Considered the "hire industry standard", early models have been used since the 1970's. The hydraulic design features a double mechanical seal, with an oil lifter, for positive seal lubrication in any operating position, with rubber and urethane components that give excellent wear resistance in site water Uses that contain sand and silt in suspension. The top discharge design forms a water and air-cooling channel and this, combined with a high-performance motor, enables long periods of operation in seepage conditions. On theLB-480andLB-800models, the discharge can be fixed in horizontal or vertical positions to enable the user to position the outlet in the required direction and prevent obstructions from a kinked hose.

• Motor Output: 0.48 KW (approximately 2/3 HP)
• Voltage: 230V
• Phase: Single-phase
• Discharge Bore: 50mm (2 inches)
• Maximum Flow Rate: 225 litres per minute
• Maximum Head: 11 metres
• Free Passage: 6mm

• Dimensions: 187 x 353mm (diameter x height)
• Dry Weight: 10.4 kg

• Slimline Design: The pump's compact size allows it to fit into 8-inch pipes, making it versatile for various Uses
• Top Discharge: This feature provides maximum motor cooling efficiency, enabling continuous duty operation at low water levels and extended dry-run capability
• Durable Construction: Built with robust materials for long-lasting dynamic performance in demanding conditions
• Manual Operation: This version is manually operated, without an automatic float switch

The LB-480 is capable of handling dirty water and is suitable for various Uses such as construction site dewatering, flood control, and general water transfer tasks. Its ability to operate at low water levels and withstand dry running makes it particularly useful in challenging environments. This pump combines powerful dynamic performance with easy handling, making it a popular choice for contractors and other professionals who require reliable water removal solutions.

Real-world product applications

• Dewatering areas such as pits, sumps, and low points
• Draining water from site works and excavations
• Removing unwanted water from tanks and containers
• Supporting general drainage and clean-up tasks
• Assisting with temporary water transfer

Key Product Features

• Flow rate: 225 Ltr/min
• Voltage: 230V
• Maximum head: 11m

Tsurumi (est. 1924) is a Japanese manufacturer specialising in heavy-duty submersible pumps for drainage, construction dewatering and wastewater. Product ranges include contractor dewatering, slurry and sewage pumps. Common applications include site dewatering, civil engineering, tunnelling, quarrying and public wastewater projects requiring solids handling.
