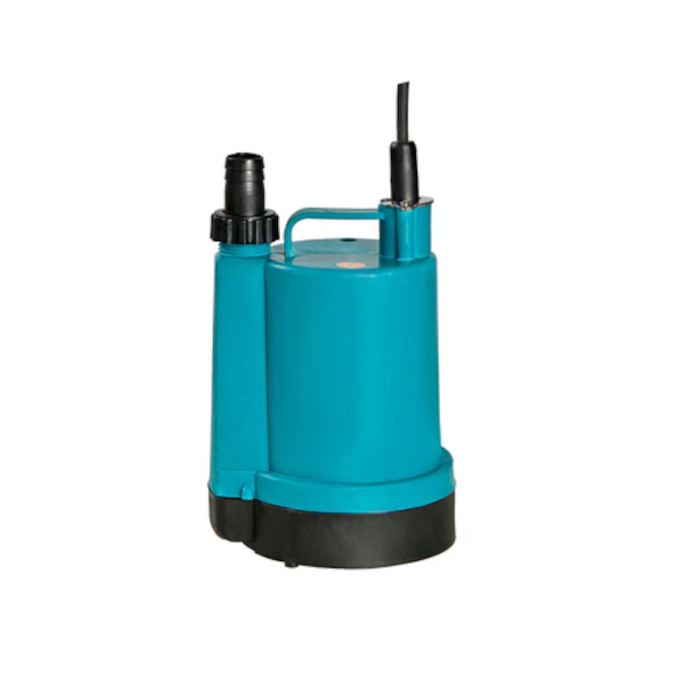

Tsurumi - BPS-100 Submersible Drainage Pump - 230V - Manual

The Tsurumi - BPS-100 Submersible Drainage Pump - 15-10-1095 - Manual - 230V (Part No. 15-10-1095) is a versatile and efficient submersible pump designed for light-duty drainage and flood control Uses. This pump is part of the BPS series, renowned for its reliability and dynamic performance in various domestic, trade, and industrial settings.

TheBPSseries has a water cooled, top discharge design for Uses where space is limited, operating while partially submerged or during short periods of dry running. Available as manual or with a pendant float switch, for automatic operation. TheBPS-100A(V)automatic model incorporates a tube type float switch for narrow sump Uses. Manual versions of modelsBPS-80andBPS-100are fitted with residue strainers which enables the pumping of water down to 3mm. For use in domestic, trade and industrial Uses, but not recommended for ponds or water features.

Product Engineering Information

• The pump features a top discharge design, making it suitable for partial immersion Uses and use in spaces with limited access
• It is constructed with high-quality materials, including a Stainless Steel shaft for durability
• The pump is equipped with a carbon/ceramic mechanical seal housed in an intermediate oil chamber, along with an inner lip seal, providing excellent wear resistance and protection during short periods of dry running

Performance

• The BPS-100 model offers a flow rate of 70 litres per minute
• It can achieve a maximum head of 6 metres
• The pump has a power rating of 0.1 KW and operates on 230V electricity

Sizing and Weight Information

• Width: 134 mm
• Length: 155 mm
• Height: 250 mm
• Dry weight: 2.8 kg

The Tsurumi - BPS-100 Submersible Drainage Pump is ideal for:

• Flood control in basements and other confined spaces
• Light-duty drainage tasks in domestic and industrial settings
• Uses where space is limited or partial submersion is required

This pump offers an excellent balance of quality construction and affordability, making it a popular choice for various drainage needs. However, it is not recommended for use in ponds or water features.

Real-world product applications

• Dewatering flooded areas such as basements and pits
• Draining water from excavations, trenches, and site works
• Removing water from sumps, chambers, and collection points
• Supporting general drainage and clean-up tasks
• Transferring water from tanks or containers

Key Product Features

• Flow rate: 70 Ltr/min
• Water type: Clean or Discoloured
• Voltage: 230V
• Maximum head: 6.5m

Tsurumi (est. 1924) is a Japanese manufacturer specialising in heavy-duty submersible pumps for drainage, construction dewatering and wastewater. Product ranges include contractor dewatering, slurry and sewage pumps. Common applications include site dewatering, civil engineering, tunnelling, quarrying and public wastewater projects requiring solids handling.
