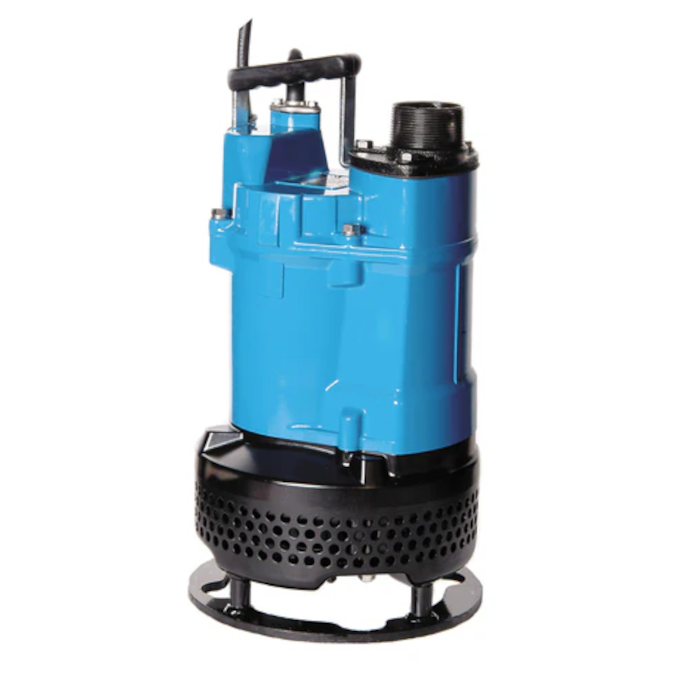

Tsurumi - KTV2-80 Submersible Pump – With Agitator - 400V - Three Phase - Manual

The Tsurumi - KTV2-80 is a robust, three-phase submersible slurry Pump - 10-10-1146 designed for heavy-duty Uses in environments like construction, mining, and industrial settings. This model features a built-in agitator, making it particularly effective for handling liquids with high concentrations of solids.

TheKTV2pumps are portable three phase slurry pumps, in lightweight aluminium, with a built-in agitator to stir sand, silt and pulverized solids into suspension for pumping. Constructed in superior grade materials throughout, they give exceptional performance in harsh operating conditions. The hydraulic design features a double mechanical seal, with an oil lifter, for positive seal lubrication in any operating position. The top discharge design forms a water and air-cooling channel and this, combined with a high-performance motor, enables long periods of operation in seepage conditions. Maintenance is straightforward, with simple replacement of parts, without the need for special tools. High-performance motors feature thermal protection, enabling simple installation and direct connection to the power supply.

• Model: KTV2-80
• SKU: 10-10-1146
• Pump Type: Submersible slurry pump with agitator
• Power Supply: 400V, Three-phase
• Maximum Flow Rate: 725 litres per minute (43.50 m³/h)
• Maximum Head: 23 metres
• Outlet Size: 3" BSPM and 80mm
• Motor Power: 3 kW
• Maximum Solid Passage: 10mm
• Maximum Operating Temperature: 40°C

• Impeller: Vortex-type made of chromium iron for excellent wear resistance
• Agitator: Built-in, made of chromium iron to stir solids into suspension
• Mechanical Seal: Dual hard-face (silicon carbide – silicon carbide) in oil bath for enhanced durability
• Pump Chamber: Rubber-lined for improved wear resistance
• Shaft: 403 Stainless Steel
• Motor Protection: Internal overload for simple installation

• Dimensions: 295mm (W) x 295mm (L) x 550mm (H)
• Dry Weight: 37 kg
• Cable: Supplied with 20 metres of heavy-duty rubber power cable

The KTV2-80 is designed for efficient pumping of slurries and liquids with high solid content, making it ideal for Uses in construction sites, quarries, and concrete mixing plants.

Real-world product applications

• Removing water from pits, sumps, and collection points
• Supporting drainage and water transfer duties
• Dewatering flooded areas and low-lying spaces
• Transferring water from tanks and containers
• Assisting with general submersible pumping tasks

Key Product Features

• Flow rate: 725 Ltr/min
• Water type: Dirty Water
• Voltage: 400V
• Maximum head: 23m

Tsurumi (est. 1924) is a Japanese manufacturer specialising in heavy-duty submersible pumps for drainage, construction dewatering and wastewater. Product ranges include contractor dewatering, slurry and sewage pumps. Common applications include site dewatering, civil engineering, tunnelling, quarrying and public wastewater projects requiring solids handling.
