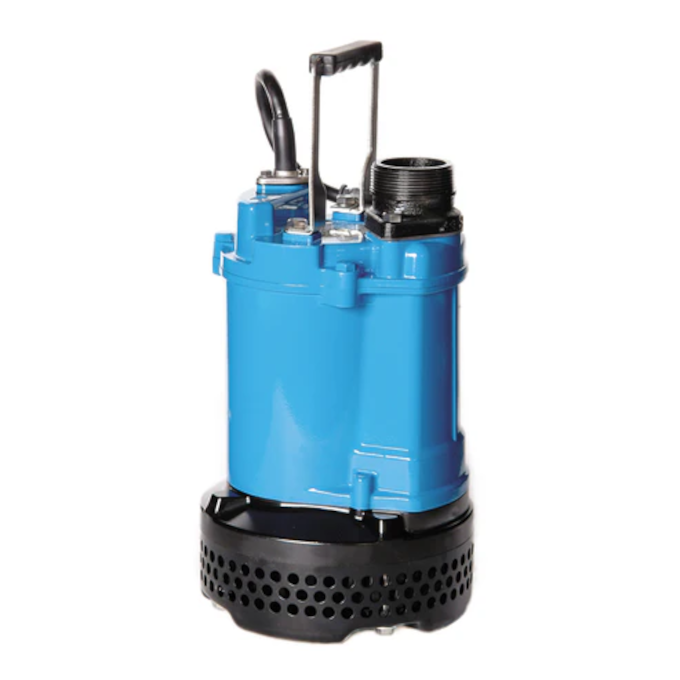

Tsurumi - KTV2-22 Submersible Drainage Pump - 400V - Three Phase - Manual

The Tsurumi - KTV2-22 is a robust and versatile submersible drainage Pump - 10-10-1029 designed for heavy-duty Uses in environments like construction, mining, and industrial settings. This 400V three-phase pump combines portability with durability, making it an ideal choice for contractors and site managers dealing with challenging dewatering tasks.

TheKTVseries is a range of lightweight, three phase, contractors' pumps, which are constructed in superior grade materials throughout to give exceptional performance in harsh operating conditions. The hydraulic design features a double mechanical seal, with an oil lifter, for positive seal lubrication in any operating position. The top discharge design forms a water and air-cooling channel and this, combined with a high-performance motor, enables long periods of operation in seepage conditions. Maintenance is straightforward, with simple replacement of parts, without the need for special tools. High-performance motors feature thermal protection, enabling simple installation and direct connection to the power supply.

Performance

• Maximum flow rate: 525 litres per minute
• Maximum head: 24 metres
• Free passage: 8.5mm

Construction

• Lightweight cast aluminium motor body for improved portability
• Pressed steel strainer for durability
• Vortex impeller made of ductile iron for excellent wear resistance
• Rubber pump chamber for handling abrasive materials

Motor and Power

• Power output: 2.2 kW
• Voltage: 400V three-phase
• Built-in thermal protection

Sealing and Lubrication

• Double mechanical seal with silicon carbide faces
• Oil lifter for positive seal lubrication in any position
• Oil bath chamber for seal cooling and lubrication

Additional Features

• 20-metre heavy-duty rubber power cable included
• 2" BSPM outlet with included hose connector
• Top discharge design for efficient motor cooling
• Capable of extended operation with minimal water levels

The Tsurumi - KTV2-22 is engineered to handle water containing sand and silt, making it suitable for a wide range of Uses including construction site dewatering, quarry operations, and industrial processes. Its robust construction and innovative features ensure reliable dynamic performance and minimal maintenance requirements, even in severe operating conditions.

Real-world product applications

• Dewatering flooded areas such as basements and pits
• Draining water from excavations, trenches, and site works
• Removing water from sumps, chambers, and collection points
• Supporting general drainage and clean-up tasks
• Transferring water from tanks or containers

Key Product Features

• Flow rate: 525 Ltr/min
• Water type: Dirty Water
• Voltage: 400V
• Maximum head: 24m

Tsurumi (est. 1924) is a Japanese manufacturer specialising in heavy-duty submersible pumps for drainage, construction dewatering and wastewater. Product ranges include contractor dewatering, slurry and sewage pumps. Common applications include site dewatering, civil engineering, tunnelling, quarrying and public wastewater projects requiring solids handling.
