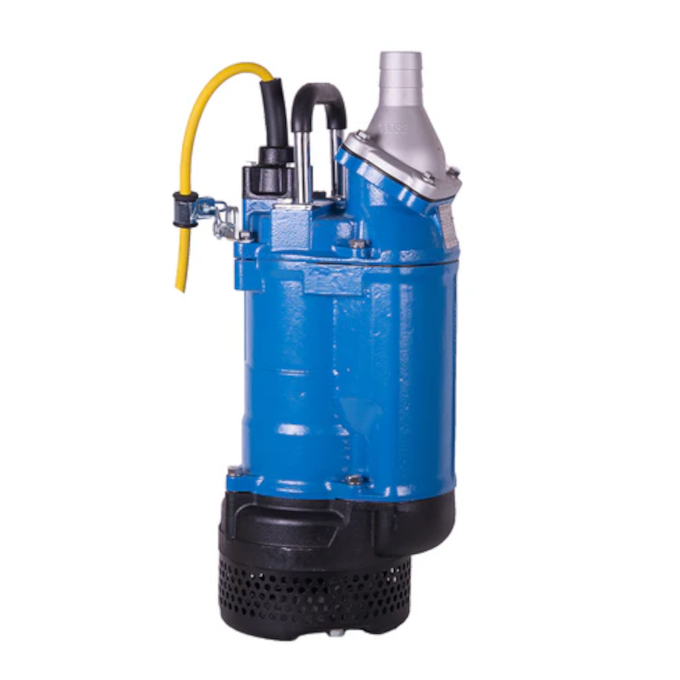

Tsurumi - KTZ32.2 Heavy-Duty Drainage Sump Pump - 400V – Three Phase - Manual

The Tsurumi - KTZ32.2 is a robust and versatile heavy-duty drainage sump Pump - 10-10-1192 designed for demanding industrial and construction Uses. This manual, three-phase 400V pump combines durability with high dynamic performance, making it an ideal choice for contractors and site managers dealing with challenging dewatering tasks.

TheKTZseries is a range of three phase, contractors' pumps which are constructed in superior grade materials throughout to give exceptional performance in harsh operating conditions. The hydraulic design features a double mechanical seal, with an oil lifter, for positive seal lubrication in any operating position. The top discharge design forms a water and air-cooling channel and this, combined with a high-performance motor, enables long periods of operation in seepage conditions. The discharge can be fixed in horizontal or vertical positions to enable the user to position the outlet in the required direction and prevent obstructions from a twisted hose. Maintenance and altering the performance of a pump is straightforward, with simple replacement, or changing of parts, without the need for special tools and a workshop. High-performance motors feature thermal protection, enabling simple installation and direct connection to the power supply.

Special use options: IDS (individually screened cable) and sacrificial anodes (Please request a quotation)

dynamic performance:

• Maximum flow rate: 800 litres per minute
• Maximum head: 20 metres
• Free passage: 8.5 mm

Construction:

• Outlet size: 3" BSPM & 80 mm
• Motor power: 2.2 kW
• Voltage: 400V (three-phase)

Sizing and Weight Information:

• Width: 216 mm
• Length: 235 mm
• Height: 498 mm
• Dry weight: 34 kg

The KTZ32.2 features a Cast Iron pump casing and motor frame, complemented by an open impeller made of chromium iron. This construction ensures exceptional wear resistance, maximising dynamic performance and minimising maintenance even in harsh operating conditions. The pump is equipped with a heavy-duty motor fitted with internal overloads, allowing for simple installation and direct connection to the power supply.

A key feature of the KTZ32.2 is its 420 Stainless Steel shaft fitted with an ultra-hardwearing, silicon carbide, double mechanical seal housed in an oil chamber. The pump also incorporates a patented oil lifter for positive seal lubrication in any position, enhancing its durability and reliability.

The KTZ32.2 is designed for easy maintenance, allowing simple replacement of wearing parts without the need for specialised tools or a workshop. Additionally, users can alter the pump's head and capacity by changing the impeller and suction cover, providing flexibility for various Uses without the need to purchase a new pump.

Real-world product applications

• Dewatering areas such as pits, sumps, and low points
• Draining water from site works and excavations
• Removing unwanted water from tanks and containers
• Supporting general drainage and clean-up tasks
• Assisting with temporary water transfer

Key Product Features

• Flow rate: 800 Ltr/min
• Water type: Dirty Water
• Maximum head: 20m

Tsurumi (est. 1924) is a Japanese manufacturer specialising in heavy-duty submersible pumps for drainage, construction dewatering and wastewater. Product ranges include contractor dewatering, slurry and sewage pumps. Common applications include site dewatering, civil engineering, tunnelling, quarrying and public wastewater projects requiring solids handling.
