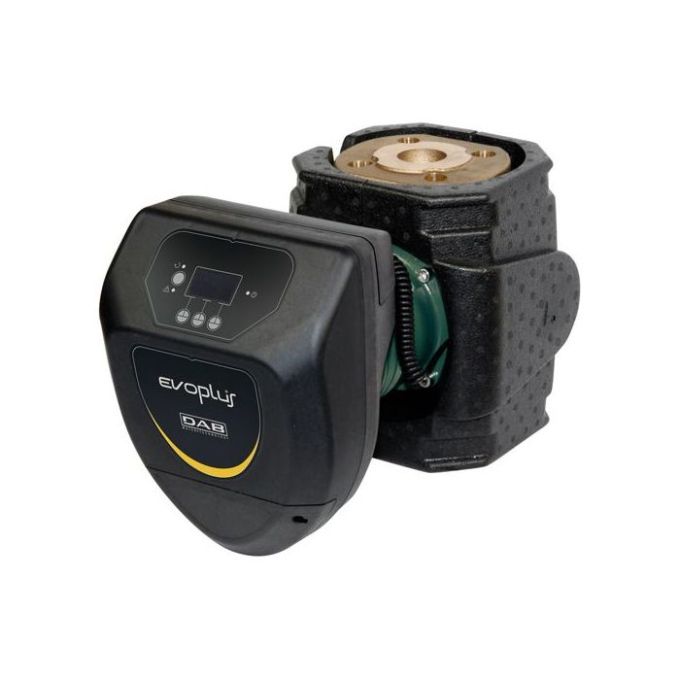

DAB - EVOPlus B 40/250.40 SAN M Circulator Pump - 240V - Single Phase - 143 Ltr/min - Clean or Discoloured

Wet rotor electronic central heating circulator pump engineered for the circulation of drinkable hot water in residential building service and commercial building service. Possibility of remote control with the DConnect service, the DConnect Box is supplied separately.

Construction Includes Of The Pump

Bronze hydraulic part. In-line suction and delivery ports. Technopolymer impeller.

Construction Features Of The Electronics

Greyscale OLED display with four keys, a circulator status notification LED and an alarm LED. It is equipped with an integrated variable frequency drive to ensure better all-round performance and energy efficiency and also to protect the system against water hammer action. It enables connection to management systems with the ModBus protocol using a multi-function module.

Connection to control systems via external signal 0-10 v is possible or with PWM and connection to ModBus system management systems, LonBus with special additional communication module.

The DAB EVOPlus B 40/250.40 SAN M Circulator Pump - 240v - Single Phase - 143 Ltr/min. is a Circulator Pump item. Voltage for this item is 240V. It has an actual flow rate of 143 Ltr/min. The maximum head for this pump is 4m. This is a Surface Mounted pump which can be suitable when the pump can sit in a dry, accessible location and draw liquid in via a suction pipe or hose.

Key Product Features and Use

• Flow rate: 143 Ltr/min
• Water type: Clean or Discoloured
• Voltage: 240V
• Maximum head: 4m

Real-world product applications

• Circulating water around closed-loop pipework systems
• Maintaining flow through distribution circuits
• Supporting recirculation in building services installations
• Keeping consistent flow through equipment or pipe runs
• Assisting with loop circulation for system efficiency
