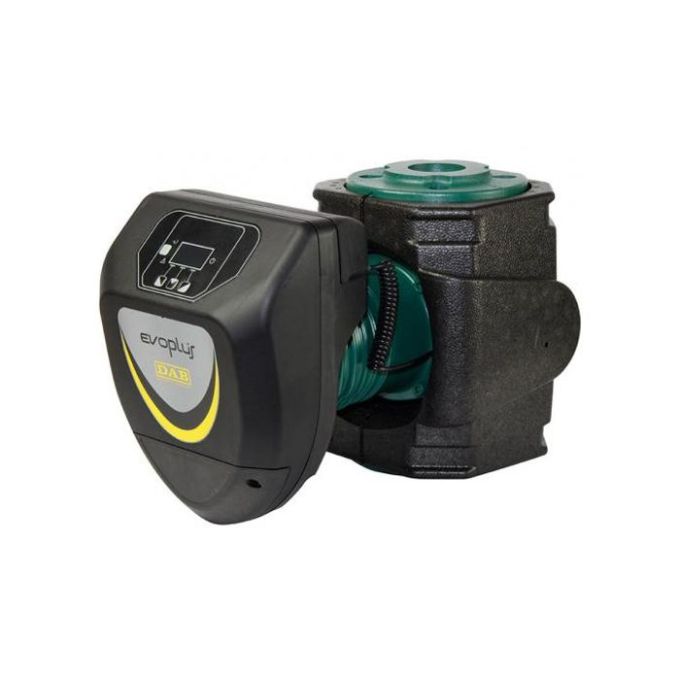

DAB - EVOPlus B 40/220.40 M Circulator Pump - 240V - Single Phase - 211 Ltr/min - Clean or Discoloured

Wet rotor electronic central heating circulator pump engineered for the circulation of water in conditioning and heating systems in commercial building service. The single version includes insulation shells.

The Evoplus D versions are supplied as standard with an automatic non-return suction valve incorporated in the delivery port to avoid water recirculating through the unit when it is not running and a blank flange for servicing either of the two motors.

Possibility of remote control with the DConnect service (DConnect Box supplied separately).

Construction Includes Of The Pump

Compact circulation pump with Cast Iron hydraulic part. Flanged in-line suction and delivery ports. The single version is fitted with insulation shells. Techno polymer impeller.

Construction Features Of The Pump

Synchronous electric motor with wet rotor and permanent magnet. Hardened Stainless Steel motor shaft mounted on ceramic bushings lubricated by the pumped liquid. Aluminum motor casing.

Construction Features Of The Electronics

Incorporates an OLED display and four configuration keys. Circulator status notification LED, alarm LED. Inverter function.
Six adjustment parameters: proportional differential pressure, constant differential pressure, constant curve adjustment, constant and proportional differential pressure in relation to water temperature, and economy function that reduces the value of all the settings to 50%.
Connection to control systems via external signal 0-10 v is possible. or with PWM and connection to ModBus system management systems, LonBus with special additional communication module, with use of the optional multi-function module, supplied as standard in the twin version.

The DAB EVOPlus B 40/220.40 M Circulator Pump - 240v - Single Phase - 211 Ltr/min. is a Circulator Pump item. Voltage for this item is 240V. It has an actual flow rate of 211 Ltr/min. The maximum head for this pump is 4m. This is a Surface Mounted pump which can be suitable when the pump can sit in a dry, accessible location and draw liquid in via a suction pipe or hose.

Key Product Features and Use

• Flow rate: 211 Ltr/min
• Water type: Clean or Discoloured
• Voltage: 240V
• Maximum head: 4m

Real-world product applications

• Circulating water around closed-loop pipework systems
• Maintaining flow through distribution circuits
• Supporting recirculation in building services installations
• Keeping consistent flow through equipment or pipe runs
• Assisting with loop circulation for system efficiency
