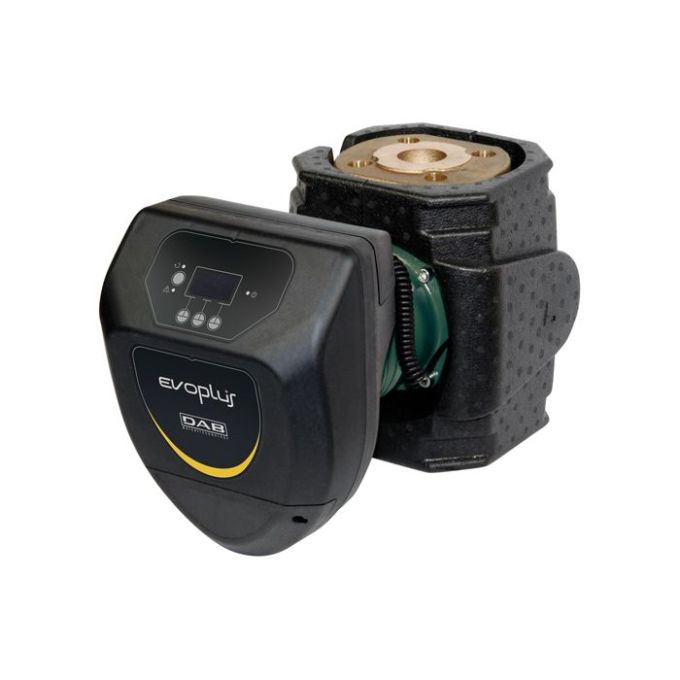

DAB - EVOPlus B 120/220.32 SAN M Circulator Pump - 240V - Single Phase - 300 Ltr/min - Clean or Discoloured

Compact wet rotor electronic circulator with bronze pump body engineered for the circulation of domestic hot water in commercial building service. It is equipped with an integrated variable frequency drive to ensure better all-round performance and energy efficiency, it also protects the system against water hammer action.

The operating parameters, like proportional or constant differential pressure and constant speed, can be easily viewed and set on the user-friendly display. Synchronous motor with permanent magnet rotor. Flanged in-line suction and delivery ports.

The circulator is WRAS-certified. Possibility of remote control with the DConnect service (DConnect Box supplied separately).

Construction Includes Of The Pump

Compact circulation pump with bronze hydraulic body. Flanged in-line suction and delivery ports. Technopolymer impeller.

Construction Features Of The Motor

Synchronous electric motor with wet rotor at permanent magnet. Hardened Stainless Steel motor shaft mounted on ceramic bushings lubricated by the pumped liquid. Aluminum motor casing.

Construction Features Of The Electronics

Greyscale OLED display with four keys on the body for configuration. Circulator status notification LED, alarm LED. The electronics also enables the variable frequency drive function and, therefore, permits greater energy efficiency and protect from water hammering effects. Operating parameters: proportional or constant differential pressure, constant speed.

The DAB EVOPlus B 120/220.32 SAN M Circulator Pump - 240v - Single Phase - 300 Ltr/min. is a Circulator Pump item. Voltage for this item is 240V. It has an actual flow rate of 300 Ltr/min. The maximum head for this pump is 12m. This is a Surface Mounted pump which can be suitable when the pump can sit in a dry, accessible location and draw liquid in via a suction pipe or hose.

Key Product Features and Use

• Flow rate: 300 Ltr/min
• Water type: Clean or Discoloured
• Voltage: 240V
• Maximum head: 12m

Real-world product applications

• Circulating water around closed-loop pipework systems
• Maintaining flow through distribution circuits
• Supporting recirculation in building services installations
• Keeping consistent flow through equipment or pipe runs
• Assisting with loop circulation for system efficiency
