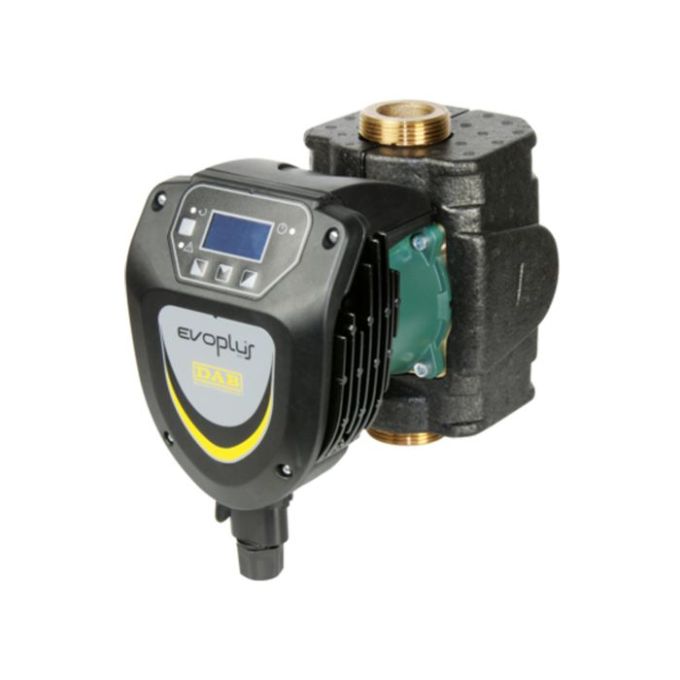

DAB - EVOPlus 80/180 SAN M Circulator Pump - 240V - Single Phase - 133 Ltr/min - Clean or Discoloured

Name: DAB - EVOPlus 80/180 SAN M Circulator Pump - 240V - Single Phase - 133 Ltr/min - Clean or Discoloured
Brand: Dab
SKU: 60151146
Price: 1006.46 GBP
Availability: InStock

Part Number:

60151146

Wet rotor electronic circulator engineered for the circulation of drinkable hot water in residential building service and commercial building service.

View Description | Data Sheet(s)

This item is now obsolete. Please view our alternatives below.

£1,258.10 RRP £1,006.46 £838.72

Free Standard Delivery

Add to Wishlist

Compare

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Wet rotor electronic circulator engineered for the circulation of drinkable hot water in residential building service and commercial building service. Possibility of remote control with the DConnect service, the DConnect Box is supplied separately.

DAB Evoplus is a low-energy electronic circulator for water circulation in commercial heating and air-conditioning systems.

It supports multiple operating modes (e.g., proportional/constant pressure and constant speed, model dependent) and is designed to adapt performance to system demand.

Typical applications

Commercial heating circulation
Commercial HVAC / chilled and hot water circulation
Energy-optimised circulation where electronic control is preferred

Construction Includes Of The Pump

Bronze hydraulic part. In-line suction and delivery ports. Technopolymer impeller.

Construction Features Of The Motor

Synchronous electric motor with wet rotor and permanent magnet. Hardened Stainless Steel motor shaft mounted on ceramic bushings lubricated by the pumped liquid. Aluminum motor casing.

Construction Features Of The Electronics

Greyscale OLED display with four keys, a circulator status notification LED and an alarm LED. It is equipped with an integrated variable frequency drive to ensure better all-round performance and energy efficiency and also to protect the system against water hammer action. It enables connection to management systems with the ModBus protocol using a multi-function module.

Connection to control systems via external signal 0-10 v is possible or with PWM and connection to ModBus system management systems, LonBus with special additional communication module.

The DAB EVOPlus 80/180 SAN M Circulator Pump - 240v - Single Phase - 133 Ltr/min. is a Circulator Pump item. Voltage for this item is 240V. It has an actual flow rate of 133 Ltr/min. The maximum head for this pump is 8m. This is a Surface Mounted pump which can be suitable when the pump can sit in a dry, accessible location and draw liquid in via a suction pipe or hose.

Key Product Features and Use

Flow rate: 133 Ltr/min
Water type: Clean or Discoloured
Voltage: 240V
Maximum head: 8m

Real-world product applications

Circulating water around closed-loop pipework systems
Maintaining flow through distribution circuits
Supporting recirculation in building services installations
Keeping consistent flow through equipment or pipe runs
Assisting with loop circulation for system efficiency

DAB Pumps is an Italian water-pump manufacturer founded in 1975. They produce reliable products, technically advanced, easy to install and efficient, ensuring high energy savings in heating and air conditioning, water supply and pressurisation, irrigation and gardening, use of rain water, draining, collection and disposal of waste water, circulation and filtration of swimming pool water. All our DAB products, including spare parts, are guaranteed against construction material and processing defects for a period of 1 year from purchase, terms apply.

More Information
Price	£838.72
Manufacturer	Dab
Warranty	1 year guarantee
Electrical supply	240V
AC Power	Single Phase
Flow Rate	133 Ltr/min
Max Head	8m
Water type	Clean or Discoloured
Pump Type Filter	Circulator Pump
Duty Type	Commercial
Submersible vs Surface Mounted	Surface Mounted
Next Day Delivery	No
Connection Size	1 1/2" Threaded
Connection Type	Threaded
Manufacturers Part Number	60151146
