Wet rotor electronic circulator engineered for the circulation of water in conditioning and heating systems in commercial building service. The integrated variable frequency drive ensures greater comfort and protection against water hammer action, and also saves energy by adapting the motor speed to actual requirements.
The display enables easy configuration and the setting of the six operating modes (proportional differential pressure, constant differential pressure, constant curve adjustment, constant and proportional differential pressure in relation to water temperature, economy function).
The circulator is supplied with flanged suction and delivery ports (also in the twin version). The single version includes insulation shells. The Evoplus D versions are supplied as standard with an automatic non-return suction valve incorporated in the delivery port to avoid water recirculating through the unit when it is not running and a blank flange for servicing either of the two motors. Possibility of remote control with the DConnect service (DConnect Box supplied separately).
Construction Includes Of The Pump
Compact circulation pump with Cast Iron hydraulic part. Flanged in-line suction and delivery ports. The single version is fitted with insulation shells. Techno polymer impeller.
Construction Features Of The Motor
Synchronous electric motor with wet rotor and permanent magnet. Hardened Stainless Steel motor shaft mounted on ceramic bushings lubricated by the pumped liquid. Aluminum motor casing.
Construction Features Of The Elecronics
Incorporates an OLED display and four configuration keys. Circulator status notification LED, alarm LED. Inverter function. Six adjustment parameters: proportional differential pressure, constant differential pressure, constant curve adjustment, constant and proportional differential pressure in relation to water temperature, and economy function that reduces the value of all the settings to 50%.
Connection to control systems via external signal 0-10 v is possible. or with PWM and connection to ModBus system management systems, LonBus with special additional communication module, with use of the optional multi-function module, supplied as standard in the twin version.

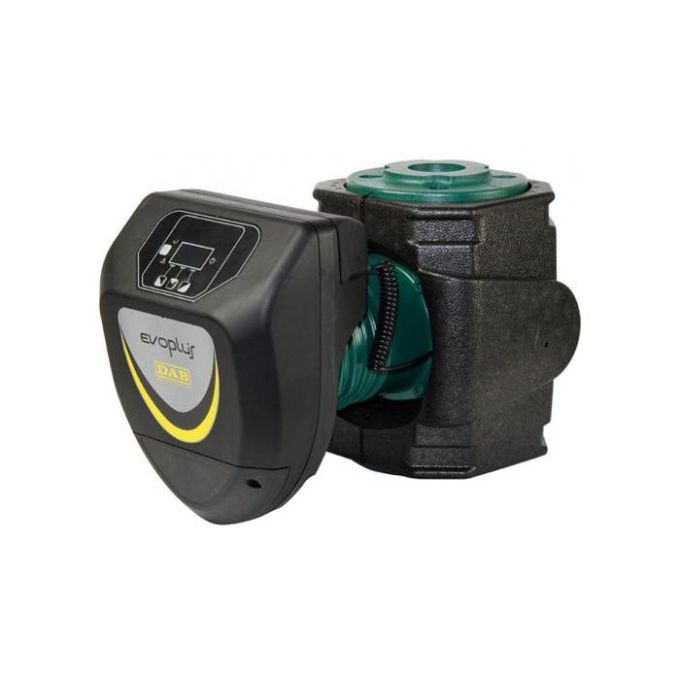

The DAB EVOPlus B 80/360.80 M Circulator Pump - 240v - Single Phase - 800 Ltr/min. is a Circulator Pump item. Voltage for this item is 240V. It has an actual flow rate of 800 Ltr/min. The maximum head for this pump is 8m. This is a Surface Mounted pump which can be suitable when the pump can sit in a dry, accessible location and draw liquid in via a suction pipe or hose.
Key Product Features and Use
- Flow rate: 800 Ltr/min
- Water type: Clean or Discoloured
- Voltage: 240V
- Maximum head: 8m
Real-world product applications
- Circulating water around closed-loop pipework systems
- Maintaining flow through distribution circuits
- Supporting recirculation in building services installations
- Keeping consistent flow through equipment or pipe runs
- Assisting with loop circulation for system efficiency
DAB Pumps is an Italian water-pump manufacturer founded in 1975. They produce reliable products, technically advanced, easy to install and efficient, ensuring high energy savings in heating and air conditioning, water supply and pressurisation, irrigation and gardening, use of rain water, draining, collection and disposal of waste water, circulation and filtration of swimming pool water. All our DAB products, including spare parts, are guaranteed against construction material and processing defects for a period of 1 year from purchase, terms apply.
This item is now obsolete. Please view our alternatives below.
