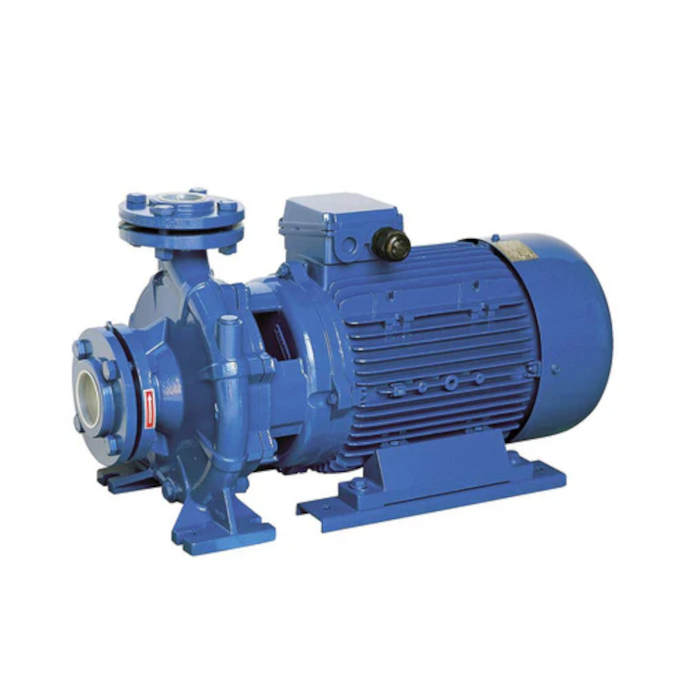

The Tsurumi - CS 32-160 C Centrifugal Pump - 19-15-1229 is a robust and efficient single-stage centrifugal pump designed for various industrial and agricultural Uses. This 400V three-phase model is part of Tsurumi's CS series, renowned for its reliable dynamic performance and versatile functionality.
TheCSseries are cast-iron, single-stage, mono-bloc, non self-priming centrifugal pumps manufactured in accordance with dimensional standards DIN-EN 733 (formerly DIN 24255), UNI 7467 and NF E44-111. This design permits "back pull out" i.e. for ease of maintenance the pump body can be removed without disconnecting it from the pipework. It also allows the unit to be installed in any position, except with the inlet facing down. Counterflanges conform to UNI 2236 PN10 standards. For pumping hot or cold clean water in industrial and agricultural Uses, they are designed for circulation, pressurisation, water supply and transfer. All models in the series are available with IE3 compliant motors*, which is an optional extra. Alternatively, pump control and energy management systems are also available
Key FeaturesProduct Engineering Information
The CS 32-160 C features a cast-iron construction, adhering to dimensional standards DIN for quality and consistency. Its single-stage, mono-bloc design allows for a "back pull out" configuration, which enhances maintenance accessibility and efficiency.
dynamic performance Specifications
- Power: 2 HP (1.5 kW)
- Flow Rate: Approximately 500 L/min
- Head: 26 metres
Uses
This pump is specifically engineered for pumping clean water, making it suitable for various industrial processes and agricultural irrigation systems. It can handle both hot and cold water, adding to its versatility in different operational environments.
Additional InformationThe Tsurumi - CS 32-160 C is designed with a focus on durability and ease of maintenance. Its non-self-priming nature means it requires initial priming before operation. The pump's efficient design allows for reliable dynamic performance in demanding industrial settings, ensuring consistent water delivery for various Uses.
Real-world product applications
- General water transfer between tanks and systems
- Supplying water for domestic or light commercial use
- Supporting irrigation and washdown duties
- Circulating or transferring water in utility applications
- Assisting with general pumping and transfer tasks
Key Product Features
- Flow rate: 500 Ltr/min
- Voltage: 400V
- Maximum head: 26m
Tsurumi (est. 1924) is a Japanese manufacturer specialising in heavy-duty submersible pumps for drainage, construction dewatering and wastewater. Product ranges include contractor dewatering, slurry and sewage pumps. Common applications include site dewatering, civil engineering, tunnelling, quarrying and public wastewater projects requiring solids handling.
This item is now obsolete. Please view our alternatives below.
