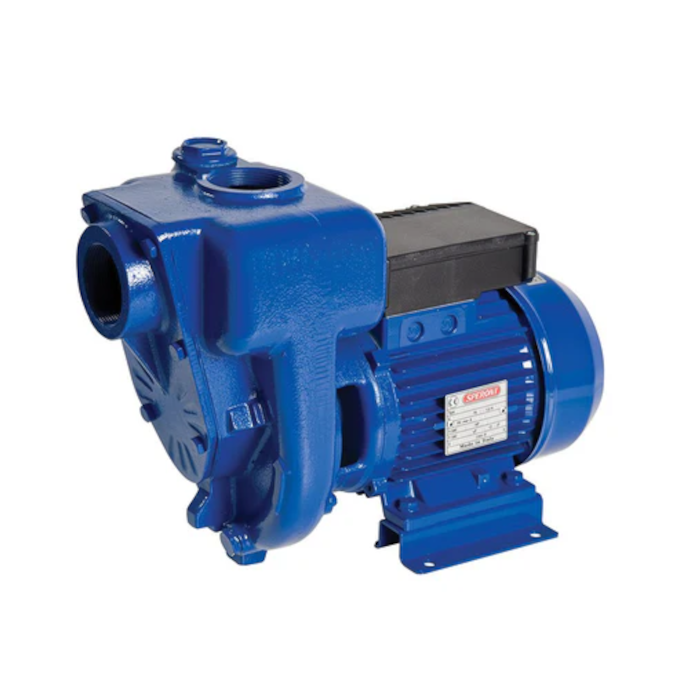

Tsurumi - HG50-1.5 Centrifugal Pump - 400V - Three Phase

The Tsurumi - HG50-1.5 Centrifugal Pump - 19-15-1249 - 400v - Three Phase is a robust and efficient surface centrifugal pump designed for handling large flow rates of dirty water without abrasive particles. This self-priming pump is constructed with a durable Cast Iron body, making it suitable for various industrial and commercial Uses.

HG(M)are self-priming, mono-bloc, centrifugal pumps in Cast Iron, with large flow rates. The design incorporates a rubber check valve, to maintain the priming water level and enable automatic priming during starting, even when the inlet pipe is empty. They are designed for many industrial and agricultural Uses and are suitable for pumping dirty water, without abrasive particles. Optional pump control and energy management systems are available.
Key Specifications

Model: HG50 1.5
Item Code: 19-15-1249

Performance:

• Flow Rate: 600 l/min
• Maximum Head: 19 metres

Electrical:

• Power: 1.5 kW
• Voltage: 400V (Three Phase)

Dimensions:

• Outlet: 2" (50 mm)
• Inlet: 2" (50 mm)
• Width: 185 mm
• Length: 412 mm
• Height: 302 mm

Weight: 28 kg (dry weight)

Features and Uses

The HG50-1.5 is part of Tsurumi's HG(M) series, which is renowned for its reliability and dynamic performance in handling dirty water Uses. Its self-priming capability allows for easy startup and operation, even in challenging environments. This pump is particularly well-suited for:

• Dewatering on construction sites
• Industrial water transfer
• Agricultural irrigation
• General water supply in areas with slightly contaminated water

With its robust construction and efficient design, the Tsurumi - HG50-1.5 Centrifugal Pump offers a dependable solution for various pumping needs, combining high flow rates with moderate head capabilities in a compact and durable package.

Real-world product applications

• General water transfer between tanks and systems
• Supplying water for domestic or light commercial use
• Supporting irrigation and washdown duties
• Circulating or transferring water in utility applications
• Assisting with general pumping and transfer tasks

Key Product Features

• Flow rate: 600 Ltr/min
• Water type: Clean or Discoloured
• Voltage: 400V
• Maximum head: 19m

Tsurumi (est. 1924) is a Japanese manufacturer specialising in heavy-duty submersible pumps for drainage, construction dewatering and wastewater. Product ranges include contractor dewatering, slurry and sewage pumps. Common applications include site dewatering, civil engineering, tunnelling, quarrying and public wastewater projects requiring solids handling.
