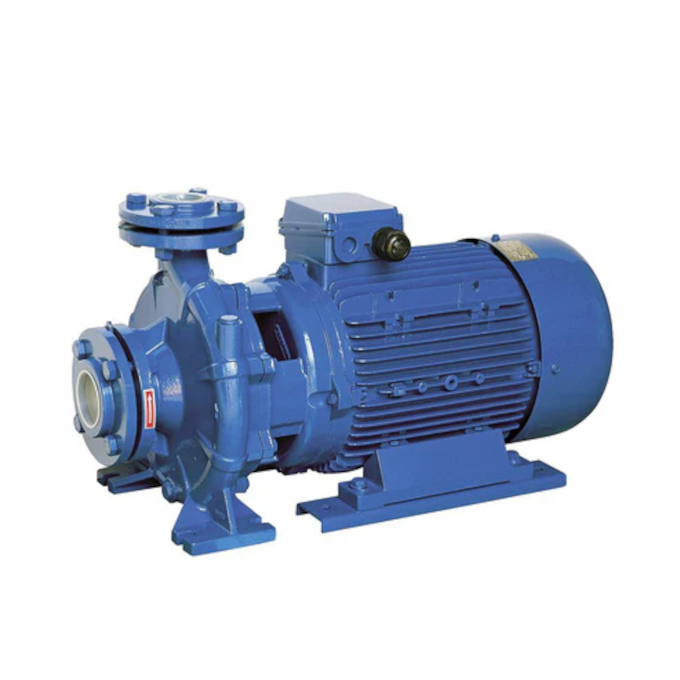

The Tsurumi - CS 50-200 A Centrifugal Pump - 19-15-1251 is a single-stage centrifugal pump designed for various industrial and agricultural Uses. This particular model operates on a single-phase 230V power supply and is identified by part number 19-15-1251.
TheCSseries are cast-iron, single-stage, mono-bloc, non self-priming centrifugal pumps manufactured in accordance with dimensional standards DIN-EN 733 (formerly DIN 24255), UNI 7467 and NF E44-111. This design permits "back pull out" i.e. for ease of maintenance the pump body can be removed without disconnecting it from the pipework. It also allows the unit to be installed in any position, except with the inlet facing down. Counterflanges conform to UNI 2236 PN10 standards. For pumping hot or cold clean water in industrial and agricultural Uses, they are designed for circulation, pressurisation, water supply and transfer. All models in the series are available with IE3 compliant motors*, which is an optional extra. Alternatively, pump control and energy management systems are also available
Key FeaturesProduct Engineering Information
The CS 50-200 A features a robust Cast Iron construction, adhering to dimensional standards for reliability and compatibility. Its single-stage centrifugal design allows for a 'back pull out' configuration, which can be advantageous for maintenance and repairs.
dynamic performance Specifications
- Maximum working pressure: 10 bar.
- Liquid temperature range: Up to 90°C
- Ambient temperature tolerance: Up to 40°C
- Total suction lift: Up to 7 metres
- Duty cycle: Continuous operation
Motor Characteristics
The pump is equipped with a 2-pole motor, featuring class F insulation and an IP44 protection rating. This configuration ensures efficient operation and protection against environmental factors.
Uses
This versatile pump is suitable for pumping clean water in various settings, including:
- Industrial water cooling systems
- Circulation systems
- Heating and air conditioning systems
- Agricultural irrigation
Additional SpecificationsThe CS 50-200 A is part of Tsurumi's CS series, which comprises non-self-priming centrifugal pumps designed for reliability and efficiency in demanding environments. Its mono-bloc construction contributes to a compact and sturdy unit, ideal for installations where space may be at a premium.
Real-world product applications
- General water transfer between tanks and systems
- Supplying water for domestic or light commercial use
- Supporting irrigation and washdown duties
- Circulating or transferring water in utility applications
- Assisting with general pumping and transfer tasks
Key Product Features
- Flow rate: 1500 Ltr/min
- Voltage: 230V
- Maximum head: 65m
Tsurumi (est. 1924) is a Japanese manufacturer specialising in heavy-duty submersible pumps for drainage, construction dewatering and wastewater. Product ranges include contractor dewatering, slurry and sewage pumps. Common applications include site dewatering, civil engineering, tunnelling, quarrying and public wastewater projects requiring solids handling.
This item is now obsolete. Please view our alternatives below.
