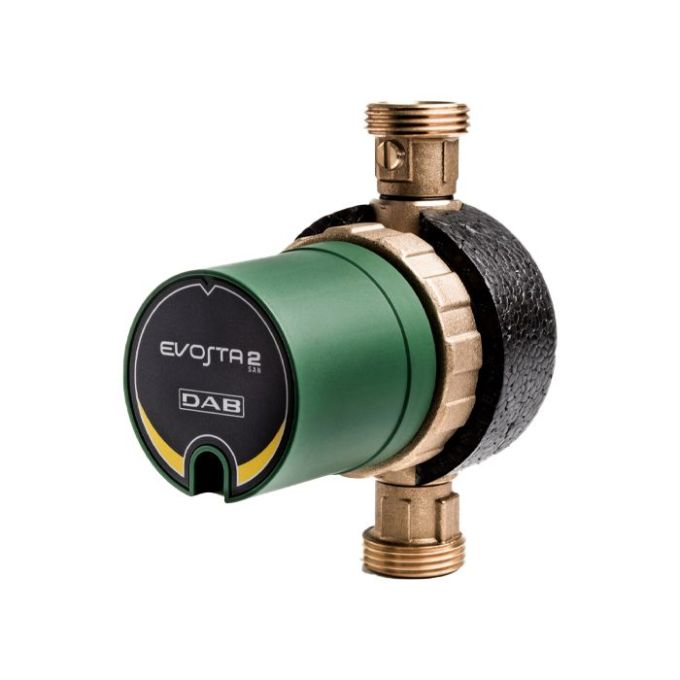

DAB - Evosta2 SAN V 11-139 Domestic Heating Circulator Pump - 240V - Single Phase

Product Applications

Low energy consumption electronic central heating pump for domestic hot water circulation.

Advantages

The new range of EVOSTA 2 SAN circulators by DAB combines the strength of a mechanical circulator with the benefits of an electronic circulator.

Thanks to the permanent magnet synchronous motor, the frequency converter and the energy efficiency of EEI ≤ 0.18, as well as the protection class IPX5 and the integrated bleeding plug. EVOSTA 2 SAN family ranks as one of the best products in the category in terms of performance and reliability.

The range of EVOSTA 2 SAN circulators is the perfect replacement for old three-speed circulators due to its compact size and all-round performance. The product is also extremely user-friendly, with a single button for sequential setting and direct access to the motor shaft for unlocking it when necessary.

Construction Includes

Bronze pump body and wet rotor motor. Steel motor casing, technopolymer impeller. Ceramic motor shaft on ceramic bushings lubricated by the pumped liquid.

Stainless Steel rotor liner and closing flange. Graphite thrust ring. EPDM seal ring and brass air bleeding plug. Thanks to the internal protection of the motor, the pump does not require any overload protection.

Control Panel

The settings of EVOSTA 2 SAN circulators can be modified in the control panel on the facia of the pump. The pump has nine settings that can be selected scrolling the MODE button.

Six illuminated segments on the display indicate the settings of the pump.

The DAB Evosta2 SAN V 11-139 Domestic Heating Circulator Pump - 240v - Single Phase is a Circulator Pump item. Voltage for this item is 240V. It is supplied with a 1.5m cable. The maximum head for this pump is 1m. This is a Surface Mounted pump which can be suitable when the pump can sit in a dry, accessible location and draw liquid in via a suction pipe or hose.

Key Product Features and Use

• Water type: Clean or Discoloured
• Voltage: 240V
• Maximum head: 1m
• Cable length: 1.5m

Real-world product applications

• Circulating water around closed-loop pipework systems
• Maintaining flow through distribution circuits
• Supporting recirculation in building services installations
• Keeping consistent flow through equipment or pipe runs
• Assisting with loop circulation for system efficiency
